Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial,Aerial & Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 8 Core GYXTW Indoor Fiber Optic Cable,12 Core GYXTW Outdoor Fiber Optic Cable,G652D Outdoor Fiber Optic Cable |
||
Description: GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Characteristics of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Min. bending radius for installation Static: 15 x cable diameter,Dynamic: 20 x cable diameter
Application temperature,range Operation: - 40℃ ~ +60℃,Installation: -10℃ ~ +60℃,Storage/transportation: - 40℃~ +60℃
|
No.
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Color
|
Blue
|
Orange
|
Green
|
Brown
|
Gray
|
White
|
|
No.
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Red
|
Black
|
Yellow
|
Purple
|
Pink
|
Aqua
|
|
No.
|
13
|
14
|
15
|
16
|
17
|
18
|
|
Color
|
Blue S100
|
Orange S100
|
Green S100
|
Brown S100
|
Gray S100
|
White S100
|
|
No.
|
19
|
20
|
21
|
22
|
23
|
24
|
|
Color
|
Red S100
|
Nature S100
|
Yellow S100
|
Purple S100
|
Pink S100
|
Aqua S100
|
|
SN
|
Item
|
Unit
|
Value
|
||
|
1
|
No. of fibers
|
count
|
4/6
|
8/12
|
24
|
|
2
|
Tube diameter
|
count
|
2.2
|
2.4
|
3.2
|
|
3
|
Cable diameter(±5%)
|
mm
|
8.5
|
8.7
|
9.5
|
|
4
|
Cable weight(±10%)
|
kg/km
|
72
|
74
|
87
|
|
5
|
Short term tension
|
N
|
1500
|
||
|
6
|
Short term crush
|
N/100mm
|
1000
|
||
|
Item
|
Test Method
|
Acceptance Condition
|
|
Tensile Strength IEC 60794-1-2-E1
|
- Load: Short term tension
- Length of cable: about 50m - Load time: 1min |
- Fiber strain 0.6%
- No fiber break and no sheath damage. |
|
Crush Test
IEC 60794-1-2-E3 |
- Load: Short term crush
- Load time: 1min |
- Loss change 0.1dB at 1550nm
- No fiber break and no sheath damage. |
Cable marking of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

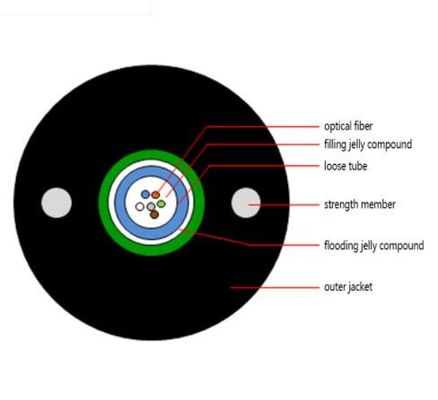

Drawings of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

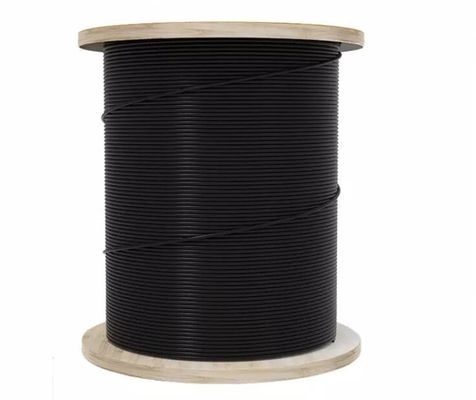

Package of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
