Product Details:
|
| Model: | ODF | Color: | Black,White |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Core: | 48 |
| Port: | Multi Ports Can Be Customized | Connector Type: | ST, SC, LC, MTRJ, FC Adapters |
| Clampe: | 12FC/SC/ST Adaptor | Place Of Origin: | Hubei, China |
| High Light: | 19In Fiber Optic Terminal Box,24Port LC Duplex Adapters Terminal Box |
||
19 Inch Standard Structure Wall Mounted 24 Port LC Duplex Adapters Fiber Optic Terminal Box
Description:
Fiber Optic Teriminal Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth electrostatic praying processing technology.
Fiber Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.
FTB Series is Drawer Type of Rack Mount Slide Fiber Patch Panel is ranging from 12 ports to 144 ports.
It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.
Feature:
19" Rack, cabinet mountable
Excellent design
Tightness and durable
Optical fiber input: 4 ports
The core and casing is insulation
Operate and install easily
FC/SC/ST/Others Adapters for Option, available.
Adapter output: up to 48 ports
Fiber pigtail can provide reliable, perfect protection
Application:
Local Area Network
CATV Network
FTTx System
Telecommunication
Wide Area Network
Test Instruments
Specification:
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

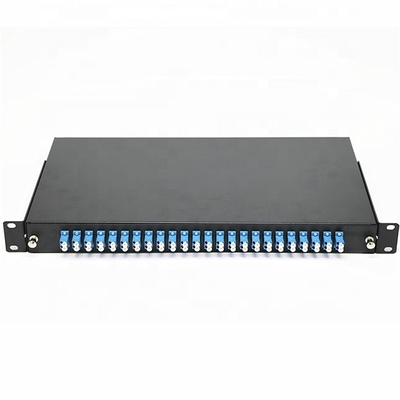

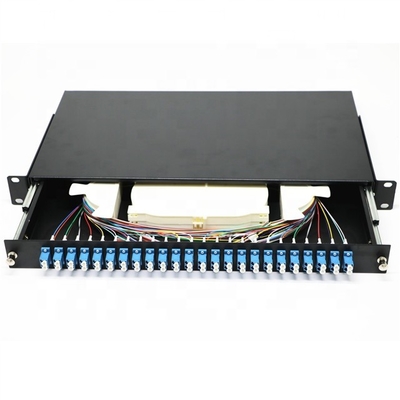

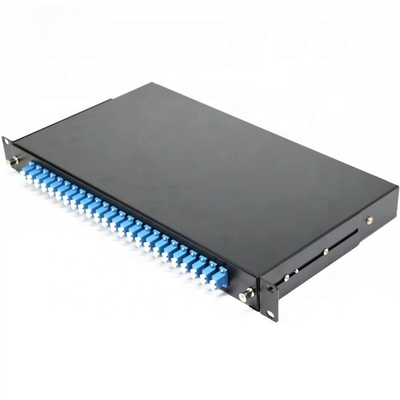

Product Picture:
