Product Details:
|
Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
---|---|---|---|
Number Of Conductors: | 2,4,8,24 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
Jacket: | PE,MDPE,LSZH,PVC | Product Name: | GYXTW Fiber Cable Outdoor Loose Tube Fiber Optic Cable Gyxtw G652d Fiber |
Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
Oem: | Available | Installation: | Self- Supporting Aerial,aerial,Aerial & Duct |
Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
High Light: | 2km GYXTW G652d Fiber Optic Cable,2km Loose Tube G652d Fiber Optic Cable,2km Loose Tube GYXTW Fiber Optic Cable |
Description: GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber

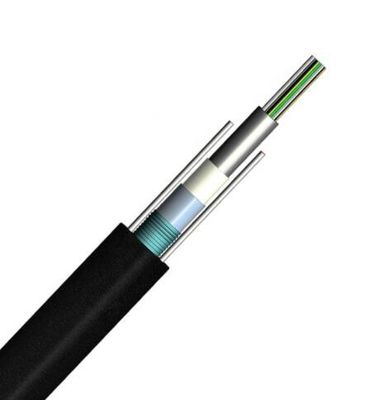

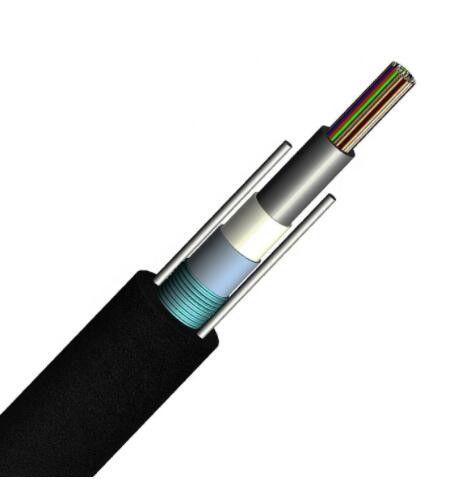

Central tube construction, jelly compound filled, water blocking tape and steel tape, then PE outer sheath incorporated with two steel wire strength elements.
Characteristics of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
Min. bending radius for installation Static: 15 x cable diameter,Dynamic: 20 x cable diameter
Application temperature,range Operation: - 40℃ ~ +60℃,Installation: -10℃ ~ +60℃,Storage/transportation: - 40℃~ +60℃
No.
|
1
|
2
|
3
|
4
|
5
|
6
|
Color
|
Blue
|
Orange
|
Green
|
Brown
|
Gray
|
White
|
No.
|
7
|
8
|
9
|
10
|
11
|
12
|
Color
|
Red
|
Black
|
Yellow
|
Purple
|
Pink
|
Aqua
|
No.
|
13
|
14
|
15
|
16
|
17
|
18
|
Color
|
Blue S100
|
Orange S100
|
Green S100
|
Brown S100
|
Gray S100
|
White S100
|
No.
|
19
|
20
|
21
|
22
|
23
|
24
|
Color
|
Red S100
|
Nature S100
|
Yellow S100
|
Purple S100
|
Pink S100
|
Aqua S100
|
SN
|
Item
|
Unit
|
Value
|
||
1
|
No. of fibers
|
count
|
4/6
|
8/12
|
24
|
2
|
Tube diameter
|
count
|
2.2
|
2.4
|
3.2
|
3
|
Cable diameter(±5%)
|
mm
|
8.5
|
8.7
|
9.5
|
4
|
Cable weight(±10%)
|
kg/km
|
72
|
74
|
87
|
5
|
Short term tension
|
N
|
1500
|
||
6
|
Short term crush
|
N/100mm
|
1000
|
Item
|
Test Method
|
Acceptance Condition
|
Tensile Strength IEC 60794-1-2-E1
|
- Load: Short term tension
- Length of cable: about 50m - Load time: 1min |
- Fiber strain 0.6%
- No fiber break and no sheath damage. |
Crush Test
IEC 60794-1-2-E3 |
- Load: Short term crush
- Load time: 1min |
- Loss change 0.1dB at 1550nm
- No fiber break and no sheath damage. |
Cable marking of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

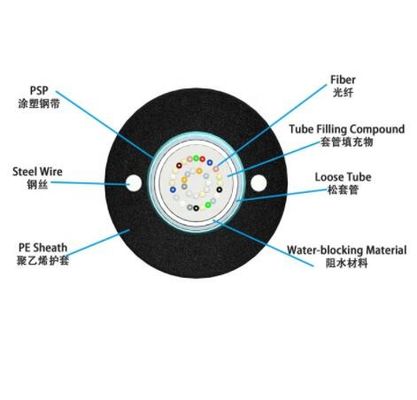

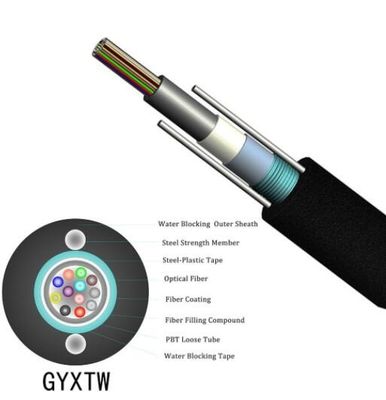

Drawings of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
