Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

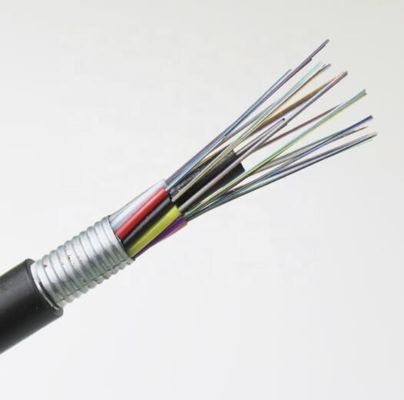

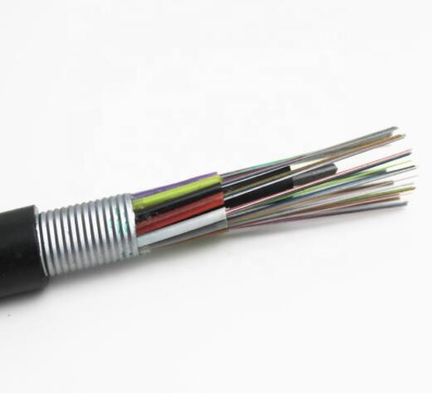

Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core

Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core
Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core
Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core

Large Image :  Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001,SGS
Model Number: GYTA
Payment & Shipping Terms:
Minimum Order Quantity: 5.0km
Price: USD60-USD350/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-21 days
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 500Km per day

Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core

Description
Application: Telecommunication,Telecom,Network,internet,Lan Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Number Of Conductors: 2,4,8,12,24,48,96 Type: Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber Count: 2-288 Core Color: Black,Blue,Grey,Customized,Green
Jacket: PE,MDPE,LSZH,PVC Name: GYTA 53 Single Mode GYTA GYTS 24 Core Fiber Optical Optic Cable
Length: 2km , Or Customized Length Jacket Material: PE,LSZH,TPU,LSZH OR PVC
Installation: Self- Supporting Aerial,aerial, Duct Structure: Loose Tube,Unitube
Operating Temperature: -40~75 Sheath Material: LSZH,HDPE,PVC
Strength Member: Steel Wire,Aluminum,or As Per Requirement
High Light:

72Core Armored Fiber Optic Cable

,

Singlemode G652d Fiber Optic Cable

,

Outdoor Duct Fiber Optic Cable GYTA

outdoor duct singlemode g652d 12 24 36 48 72 core armored fiber optic cable GYTA


Description:

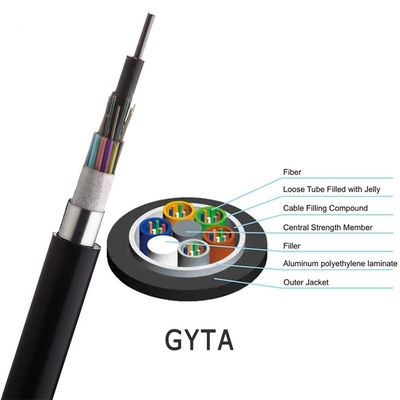

The fibers, 250μm, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polythylene (PE) for cable with high fiber count, locating in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.





Characteristics:



· Good machanical and temperature performance.


· High strength loose tube that is hydrolysis resistant.


· Special tube filling compound ensure a critical protection of fiber.


· Specially designed compact structure is good at preventing loose tubes from shrinking.


· Crush resistence and flexibility.



· PE sheath protects cable from ultraviolet radiation.



· The follwong measures are taken to ensure the cable watertight.

  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • PSP enhancing moisture-proof


Structure and Technical specifications of  GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable

G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit


Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km

Dispersion
1288nm~1339nm
|D|≤3.4
ps/(nm·km)
1271nm~1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300~1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)

PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18~1.33
μm

Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd



Additional Attenuation
@1310nm &
@1550nm
Temperature cycling test:
(-60℃~85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km

Thermal aging test

(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km
We produce cables according to the standard as below of GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14



Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 0Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 1Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 2


FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.


Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service



Q3: What is your Warranty?
A3: All the products will have 25 years Warranty


Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, PayPal, etc.


Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.


Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.


Q7: How will you delivery my goods to me?
A7: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.


Q8:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.


Drawings of Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable
Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 3

Package of GYTA 53 single mode GYTA GYTS 24 core fiber optical optic cable
Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 4

More products customized

Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 5
Outdoor Duct Singlemode G652d Armored Fiber Optic Cable GYTA 12 24 36 48 72 Core 6
