Product Details:
|
Application: | Telecommunication,Aerial,Telecom | Color: | Blue,red,black. |
---|---|---|---|
Fiber Type: | G652D,single Mode Or Multi Mode | Product Name: | GYTA GYTS Armored Single Mode Leather Fiber Outdoor Optical Cable |

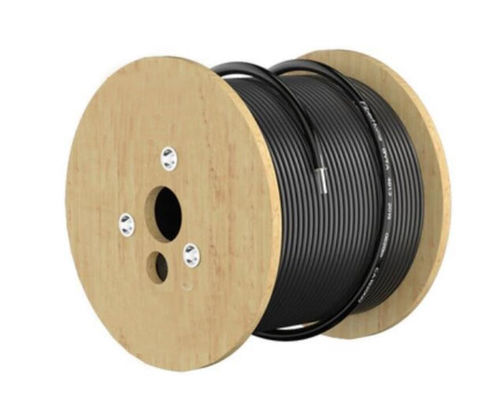

Length: | 1km,2km Or Customized Length | Jacket Material: | PE,LSZH,PVC,TPU,LSZH OR PVC |
Name: | Outdoor Armor Fiber Optic Cable | Oem: | Available |
Installation: | Self- Supporting Aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
Operating Temperature: | -40~75 | Sheath Material: | LSZH |
Strength Member: | Two Steel Wire | ||
High Light: | 2km SM Leather Fiber Optic Cable,SM Leather Outdoor Fiber Optic Cable,1km GYTA Outdoor Fiber Optic Cable |

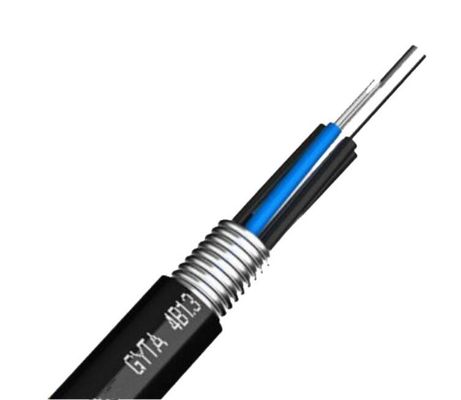

GYTA GYTS armored single mode leather fiber Outdoor optical cable

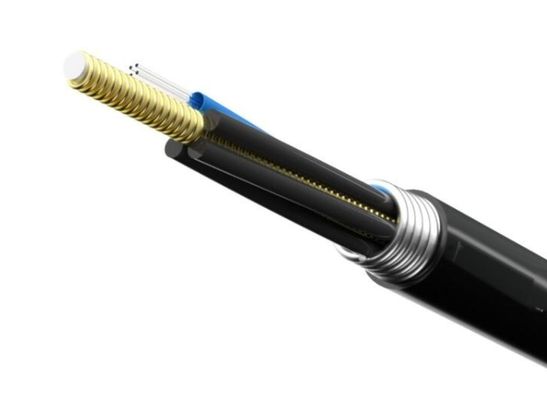

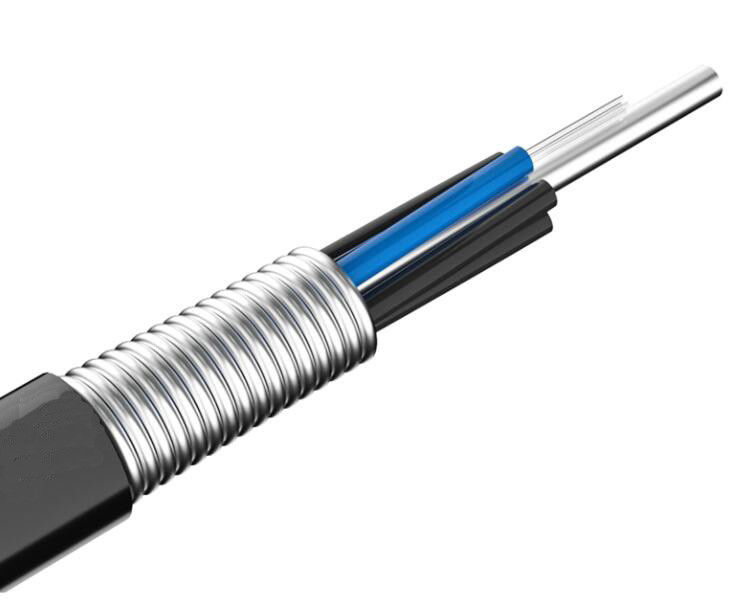

Description:The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Characteristics
Technical parameters
Fiber Num
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tensile Stength (N)
|
Crash Resistance (N/100mm)
|
||
Short term
|
Long term
|
Short term
|
Long term
|
|||
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
32-60
|
10.2
|
99
|
||||
62-72
|
10.9
|
123
|
||||
74-84
|
12.2
|
148
|
||||
86-96
|
12.2
|
148
|
||||
98-120
|
14.0
|
183
|
||||
122-144
|
14.5
|
220
|
||||
146-216
|
16.1
|
229
|
||||
218-300
|
18.5
|
290
|
Application
