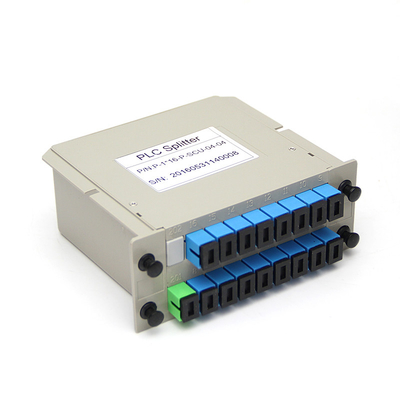

Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter

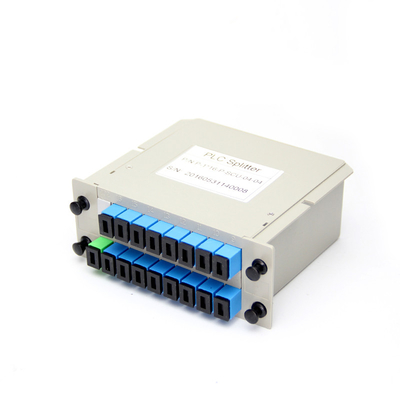

Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter

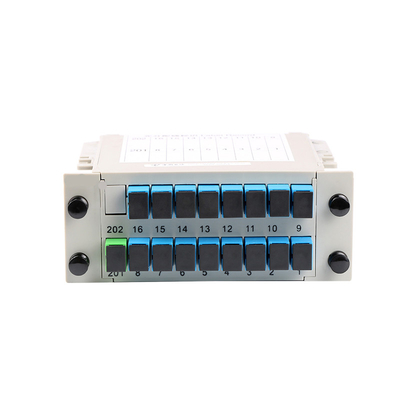

Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter
Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter

Large Image :  Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001
Model Number: Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD3.2-USD3.6/Pc
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Supply Ability: 5000 pcs per Day

Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter

Description
Connector Type: LC/SC/ST/FC/MU/MTRJ, Etc Wavelength: 1260 To 1650nm
Type: Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 Connector: SC LC
Cable Type:: G657A1 Or As Customers' Order Operating Temperation: -40℃ To 85℃
No. Of Fiber: 2 4 8 16 Usage: FTTH
Name: 1*8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable And Plug-in Type SC APC PC UPC Connector Place Of Origin: Hubei, China
High Light:

Cassette Type 1X16 Optical Fiber Splitter

,

Rack Mount Plc Splitter 1650nm

Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter



Product Description



Description
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica
optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Features
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
Types
1x2
1x4
1x8
1x16
1x32
Test wavelength
1310nm
Working wavelength
1260nm~1650nm
Interface model
SC/UPC
Insertion loss (dB) (P/S level)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss uniformity (dB)
0.4
0.6
0.8
1.2
1.5
Return loss (dB) (P/S level)
55/50
55/50
55/50
55/50
55/50
Polarization dependent loss (dB)
0.2
0.2
0.2
0.25
0.25
Directionality (dB)
55
55
55
55
55
Wavelength dependent loss (dB)
0.3
0.3
0.3
0.3
0.3
Temperature stability (dB)
0.4
0.4
0.4
0.4
0.4
Features
Good temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability



Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter 0Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter 1Rack Mount Plc Splitter ABS Box SC UPC Connectors Cassette Type 1X16 Optical Fiber Splitter 2



FAQ

1.    Are you the real manufacturer?

Yes.We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.

2.    Do you accept a small order?

Yes, it is available. We support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

3.    What is your delivery time?

It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.

4.    What payment methods do you support?

The methods are followed: T/T, L/C, Western Union and PayPal.

5.    Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free.
