8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable

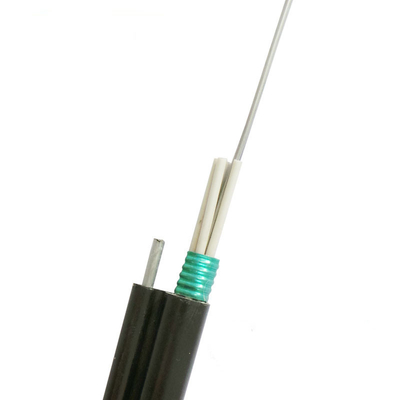

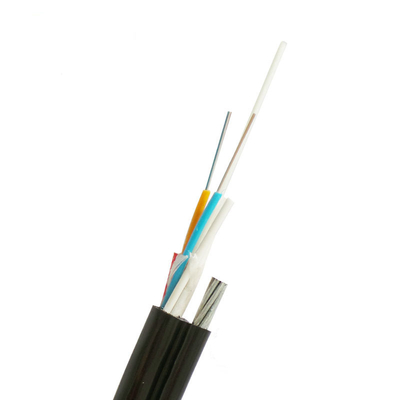

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable 8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable 8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable

Large Image :  8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001
Model Number: 8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Meters
Price: USD70-USD140/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000 Km per Day
Contact Now

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable

Description
Name: Aerial GYTC8S Figure 8 Communication Cables 12 24 48 96 Core Single Mode Fiber Optic Cable Fiber Type: G652D
Place Of Origin: Hubei, China Type: Fiber Optic Cable
Cable Diameter: 9.8*18.5mm Strength Member: Steel Wire
Installation: Self-supporting/Aerial Application: Aerial Installation
Messenger Member: Steel Wire Certification: ISO9001/CE
Fiber Options: ITU G652D ,G657A,OM1,OM2,OM3,OM4 Color: Customized
High Light:

GYTC8S Figure 8 Fiber Optical Cable

,

48Core Aerial Fiber Optical Cable

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable



Product Description

8 12 24 48 Core Self Supporting Aerial CYTC8S Figure 8 Fiber Optical Cable

Applicaiton:

The cable is specifically for self-supporting aerial installation
Long-distance communication, local trunk line, CATV & computer networks system



Introduction:
The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The
tubes are filled with a water-resistant filling compound. A steel wire locates in the center
of core as a metallic strength member. The tubes (and fillers) are stranded around the
strength member into a compact and circular cable core. After an Aluminum Polyethylene
Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.

The loose tube is made of high modulus plastics (PBT), which are filled with water resistant gel. The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provides high tensile strength and enables easy and cost saving aerial installations.


Characteristics:

1. Low attenuation, low dispersion
2. Outstanding mechanical and environmental performance due to proper design, accurate excess length and cabling process
3. Stranded steel tape armor ensures better moisture resistance and side pressure resistance
4. Compact construction, light weight, suitable for self-supporting.



Standards:

Comply with Standard YD/T 1155-2001 as well as IEC60794-1.



Tempeature:

Operating /Storage:-40°c +70°c





Technical Parameter
No. of cable
4
6
12
24
Fiber Model
G.652D
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.0
2.8
Thickness(±0.03)mm
0.35
The Max.Core NO./Tube
4
6
12
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Tape
Thickness(±0.03)mm
0.25
Messenger Wire
Material
Steel Wire
Size(±0.05)mm
2.0mm
Web
Material
MDPE
Size(±0.1)mm
2.0×2.0
Outer Sheath①
Material
MDPE
Thickness(±0.1)mm
1.2
Outer Sheath②
Material
MDPE
Thickness(±0.1)mm
1.5
Cable Diameter(±0.5)mm
6.6×11.5
7.4x12.5
Cable Weight(±10)kg
93
102
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable 0

FAQ

1.About the price?

We usually quote within 12 hours after we confirm the technical data of your products.

2.What's the payment method?

We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

3.What are your terms of payment?

30% in advance,and 70% before shipment

4.How to ship the items to me?

Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

5.How long is your delivery time?

The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.

6.Can you send me a free sample?

Yes,We are willing to send free sample,if you would like to pay the shipping costs.

7.Do you accept OEM or ODM?

Yes,we're factory. any your customized requirements we can do our best to help you realize.

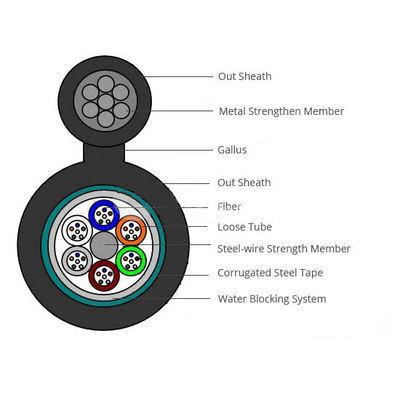

Drawings of Aerial GYTC8S Figure 8 communication cables 12 24 48 96 core single mode fiber optic cable

8 12 24 48 Core Self Supporting Aerial GYTC8S Figure 8 Fiber Optical Cable 1
