Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | ≥ 10,2,4 | Type: | Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath | Length: | 2km Or Customized Length |
| Jacket Material: | PE,LSZH,TPU,LSZH OR PVC | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey |
| High Light: | SGS Direct Buried Fiber Optic Cable,96 Core Fiber Optic Cable GYTA53 |
||

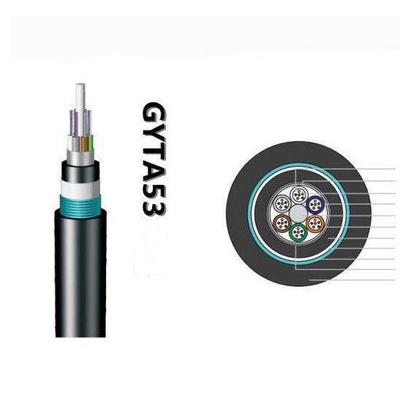

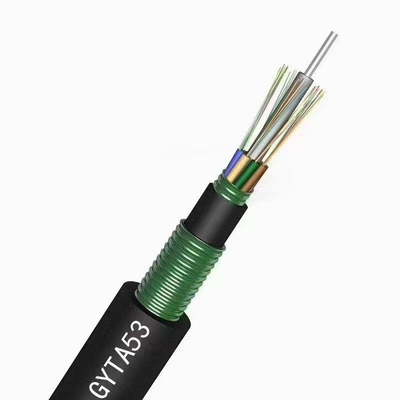

Direct buried steel tape armored 12 96 core fiber optic cable price per meter GYTA53
Description:
GYTA53 is made up of loose tube, central strength member, plastic coated aluminum tape and PE sheath. GYTS is same as GYTA except that we use the Plastic coated steel strip(PSP) not the APL. Loose tube is made of a high modulus plastic. The tubes are both filled with the water-resistant gel compound. We also use the phosphating steel wire as the central strength member here. The material of
the sheath is PE, if you want, we can do the LSZH for you, too.
1. Direct burial
2. Underground
3. Backbone Internet
|
Ref.outer diameter mm |
Ref.weight kg/km |
Ref.daily max.working tension kN |
Max allowable working tension kN |
Break strength kN |
Strength member CSA mm2 |
Modulus of elasticity kN/ m2 | Heat expansion coefficient ×10-6 /k | |
|
PE Sheath |
AT sheath | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48.0 | 24.0 | -0.4 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51.0 | 25.1 | -0.5 |
| 17.9 | 249 | 266 | 18.0 | 50 | 120 | 58.8 | 26.1 | -0.8 |

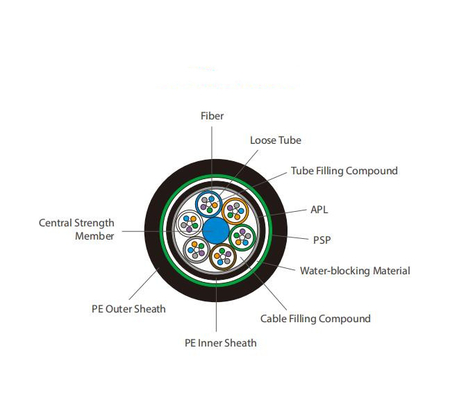

Drawings GYTA53 armoured direct fiber optical cable
