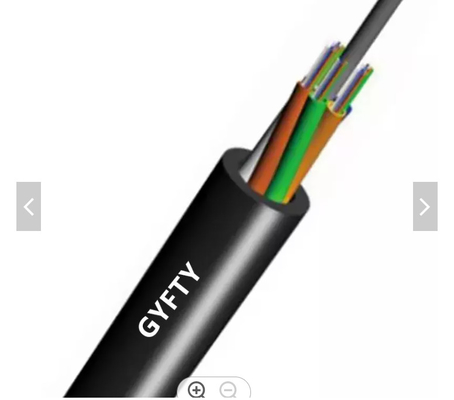

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Large Image :  GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GYFTY
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: Standard packaging
Delivery Time: 10 - 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Kilometre / Month
Contact Now

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member

Description
Jacket Material: PE Fiber Count: 4 Core
Color: Black Installation: Aerial, Duct
Armored Material: Steel Tape OEM: Available
Loose Tube: PBT Place Of Origin: Hubei, China
High Light:

GYFTY Outdoor Aerial Fiber Optic Cable

,

GYFTY 48 Core Fiber Optic Cable

,

FRP Strength Member 24 Core Cable

GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable with FRP Strength Member



Product Description

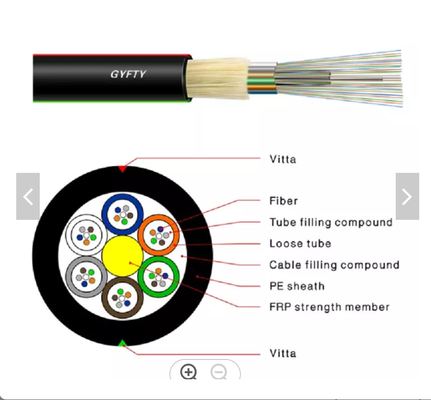

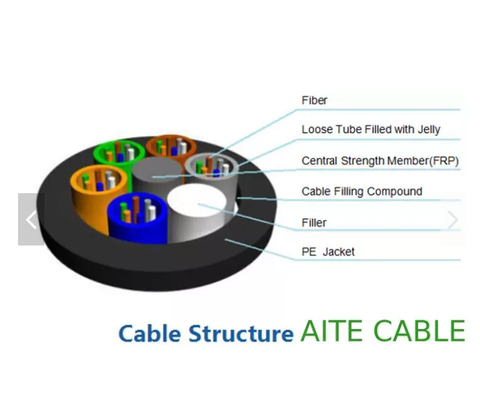

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member 0
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member 1
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member 2
GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable With FRP Strength Member 3
Properties
Non-metallic structure providing excellent anti-electromagnetism. anti thunder and anti-static performances.

Applicable fields:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Lifetime: above 30 years
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.
Specification

G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850nm


≤3.0dB/km
≤3.0dB/km
@1300nm


≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.36dB/km


@1550nm
≤0.22dB/km
≤0.23dB/km


Bandwidth (Class A)
@850


≥500MHZ·km
≥200MHZ·km
@1300


≥1000MHZ·km
≥600MHZ·km
Numerical Aperture



0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc

≤1260nm
≤1480nm
