Product Details:
|
| Jacket Material: | PE | Fiber Count: | 4 Core |
|---|---|---|---|
| Color: | Black | Installation: | Aerial, Duct |
| Armored Material: | Steel Tape | OEM: | Available |
| Loose Tube: | PBT | ||
| High Light: | GYFTY All Dielectric Fiber Optic Cable,PE Jacket All Dielectric Fiber Optic Cable,GYFTY Loose Tube Fiber Optic Cable |
||
Product Construction:
Fiber:
2-288 fibers
Uni-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced plastic (FRP)
Messenger member:
3.0mm galvanized steel
Outer Jacket:
Black UV and waterproof polyethylene (PE).
Features:
Loose tube gel-filled construction for superior fiber protection.

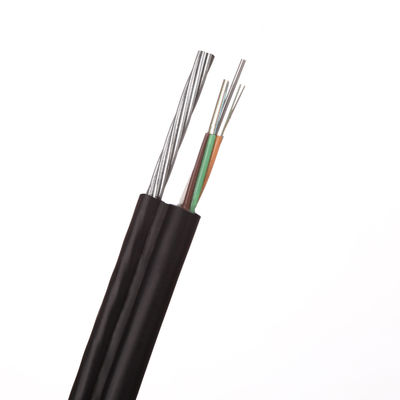

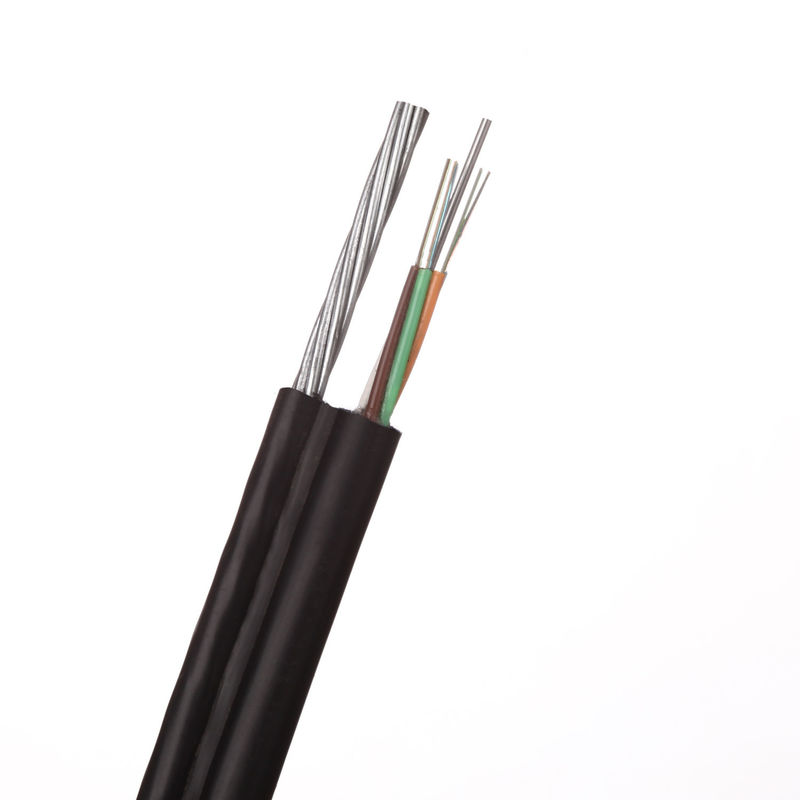

Self-supporting Figure 8 design.
Applications:
Aerial installation.
Fiber clolors:
Fiber Technical Parameters:
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|
Attenuation (+20℃) |
850nm | ≤3.0 dB/km | ≤3.3 dB/km | ||
| 1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| 1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| 1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth | 850nm | ≥500 MHz-km | ≥200 MHz-km | ||
| 1300nm | ≥500 MHz-km | ≥500 MHz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1450nm | |||
Structure and Technical Specifications:
|
Fiber Count |
Nonminal Diameter (mm) |
Nonminal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2-30 | 9.4x17.4 | 180 | 6 | 5 | 4000 | 2000 | 1000 | 300 |
| 32-36 | 10.0x18.0 | 180 | 6 | 6 | 4000 | 2000 | 1000 | 300 |
| 38-60 | 10.6x18.6 | 180 | 12 | 5 | 4000 | 2000 | 1000 | 300 |
| 62-72 | 10.9x19 | 215 | 12 | 6 | 4000 | 2000 | 1000 | 300 |
| ＞72 | Available upon customer's request | |||||||
Note: This datasheet is a reference only, please contact our sales department for detail information.
