Product Details:
|
| Name: | GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Aerial Installation |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | GYTC8S Outdoor Aerial Cable,10 Core Aerial Figure 8 Fiber Optic Cable,G652d Aerial Figure 8 Fiber Optic Cable |
||
GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
Description of GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
Features of GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
· The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
Parameter Data of GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
| Model | Fiber count | Tube count | Filling rope count |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
Technical Parameters:
Cable count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (kg) | Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(℃) |
|
| 6 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 12 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 24 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 36 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 42 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 48 | 7.0x15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 72 | 7.0x15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 144 | 7.0x15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
FAQ
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10-30 days.
We ship small batched by air, or large orders by container.
Return and WarrantyAll products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

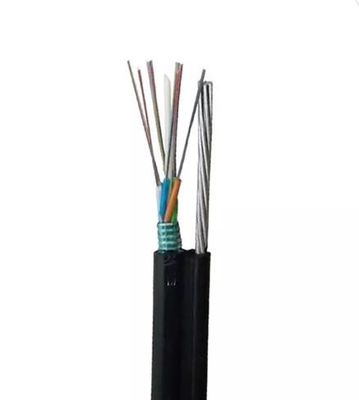

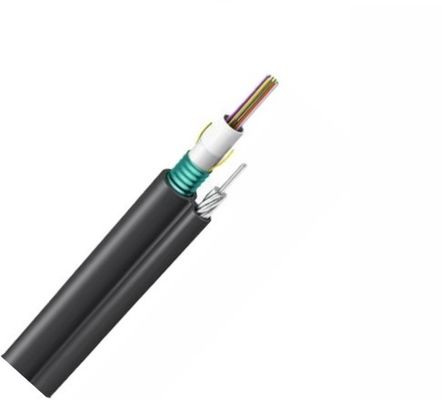

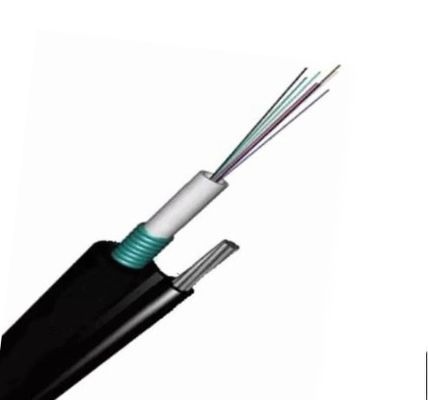

Drawings of GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber Optic Cable 10 Core
