Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm

Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm
Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm
Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm

Large Image :  Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GJFJV
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 2KM/Roll/Carton Box
Delivery Time: 5~20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Kilometre / Month

Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm

Description
Single-mode Fiber: G657A1/ G657A2 Jacket Color: Yellow
Fiber Count: 1-144 Cores Jacket: PVC / LSZH Sheath
Aramid Yarn: 16 Standard Yarn OD: 10-10.5mm
Structure: Stranded Loose Tube Fiber Type: Single Mode
Place Of Origin: Hubei, China OEM: Available
High Light:

G652d Indoor Optical Fiber Cable

,

GJFJV Indoor Optical Fiber Cable

,

OM3 Multimode Indoor Fiber Optic Cable

0.9mm Tight Buffer OM4/OM3 Multi Mode GJFJV G652d indoor Optical Fiber cable



Description

Flat Twin Duplex Indoor Cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.

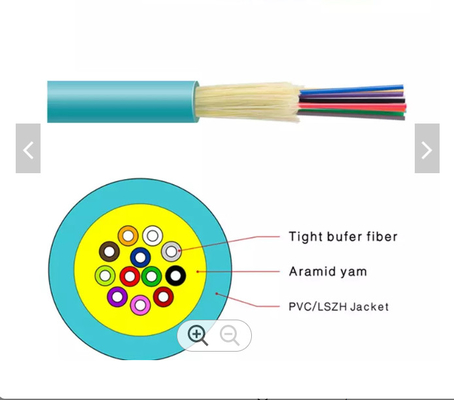

The tight buffer fiber wrapped with a layer of aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.

Then the cable is completed with a layer of flat PVC or LSZH(Low smoke, Zero halogen,Flame-retardant) jacket as out sheath . Fiber type SM OM1 OM2 OM3 OM4 OM5

3.0×5.0mm, 3.0×5.0mm ,4.0×7.0mm

Application

* Adopted to indoor distribution;

* As pigtail of communication equipment;

* Suitable for communication equipment;

* Can be installed conveniently.

Characteristics:

* Two single-fiber as basic unit.flat twin configuration;

* Single-cable with 0.6 tight buffer.Kevlar yarn applied;

* Flexible or out sheath independent strength member;

* Excellent mechanical and environmental performance.



Products Features:

Small diameter, light weight,flame retardant,excellent strippability

Low-attenuation, High flexibility





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm





G652d optic fiber Mechanical Characteristics



Tensile Strength Long Term 80N 60 50
Short Term 150N 120 100
Crush Resistance Long Term 100N/100mm 100N/100mm 100N/100mm
Short Term 500N/100mm 500N/100mm 500N/100mm
Bending Radius Dynamic 20XD 20XD 20XD
Static 10XD 10XD 10XD





Product Name
GJFJV Fiber Optic Cable Indoor
Fiber Count
12,24,48,72,92,144 Fibers
Construction
Stranded Loose Tube
Fiber Type
Singlemode G.652D
Outer Jacket Material
PVC or LSZH
Bandwidth
850nm or 1300
Transport Temperature
-20℃~﹢60℃
Operation Temperature
-20℃ to +60℃



Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm 0Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm 1Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm 2

Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm 3

Tight Buffer OM4/OM3 Multi Mode GJFJV G652d Indoor Optical Fiber Cable 0.9mm 4
