Product Details:
|
| Place Of Origin: | Hubei, China | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Long Distance Communication System |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | Gyxtc8s 12 Core Optical Cable Fiber,Aerial Ftth Figure Optical Cable Fiber |
||

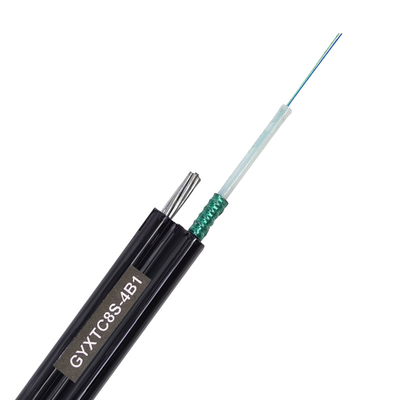

Self Supporting Outdoor Aerial Ftth Figure Gyxtc8s 24 12 Core Optical Cable Fiber

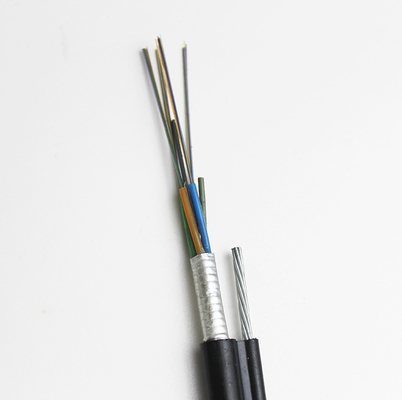

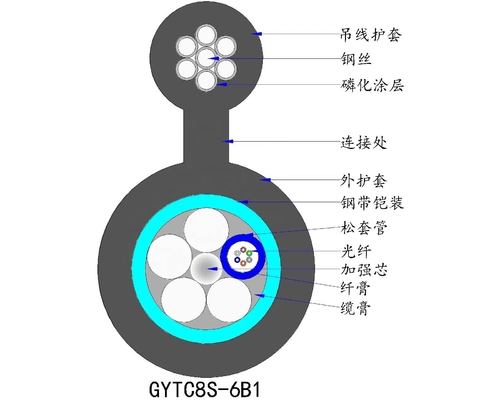

The structure of GYTC8S cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel (PSP) and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Product Characteristics
• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength.
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel (PSP)
Applications
• Overhead
Structural Parameter
| Model | Fiber count | Tube count | Filling rope count |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
--- |
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with more than 560 staff.
2.How many years have you been in the field of fiber optics ?
Since 2001.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, CIQ.
6.What is your delivery time?
Usually within 2-30 working days
7.What is your payment way?
T/T, L/C, Western Union and Paypal.
8.Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
Drawings of GYFTC8Y Non-metallic Self-supporting Outdoor Figure 8 Fiber Optic Cable
