Product Details:
|
| Type: | FTTx Solutions | Usage: | FTTx FTTH FTTB Network |
|---|---|---|---|
| Product Name: | Fast Connector | Dimensions: | 50mm*8.9mm*7mm |
| Tension: | 20N | Return Loss:: | ≥50db |
| Insertion Loss: | ≤0.3db | Working Temperature: | -40℃~80℃ |
| Onnector: | SC UPC/PC | Fiber:: | 2.0*3.0 GJXH Or Customized |
| High Light: | SC APC UPC Fiber Optic Connector,2.0x3.0 GJXH SC Fast Connector |
||

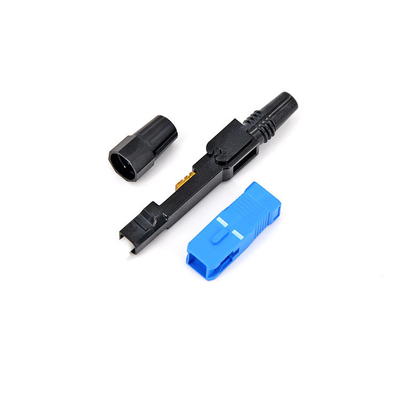

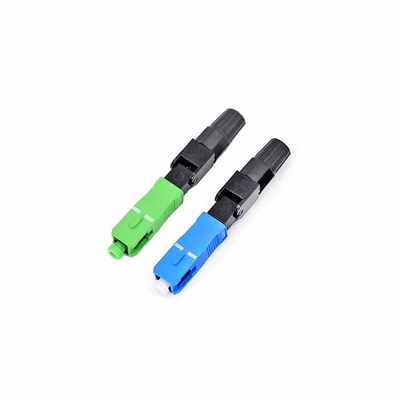

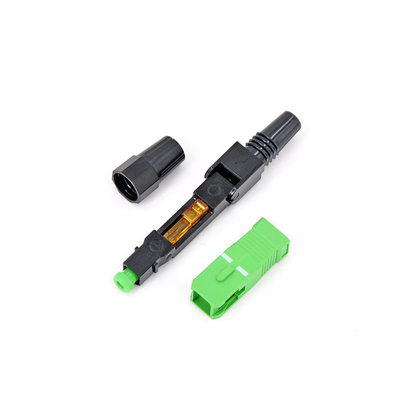

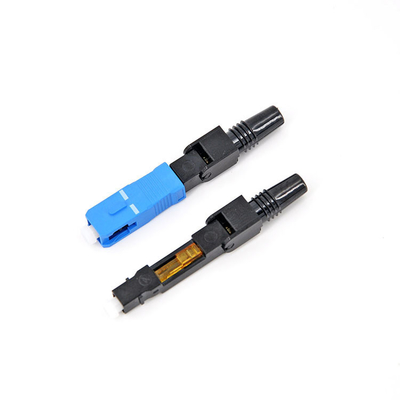

SC Fast Connector Field Quick Assembly SC APC UPC Fiber Optic Connector
The SC/APC UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents,
municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules
Products Display
Installation
