Product Details:
|
| Name: | 1 Core 2 Cores 4core 12core Gjyxch Gjyxfch Gjxh G657a1 G657a2 G652d Ftth Indoor Outdoor Fiber Optic Drop Cable | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Place Of Origin: | Hubei, China | Jacket Material: | LSZH |
| High Light: | Outdoor Fibre Ftth Drop Cable,1.2mm Fibre Ftth Drop Cable,GJYXH Fibre Drop Cable |
||

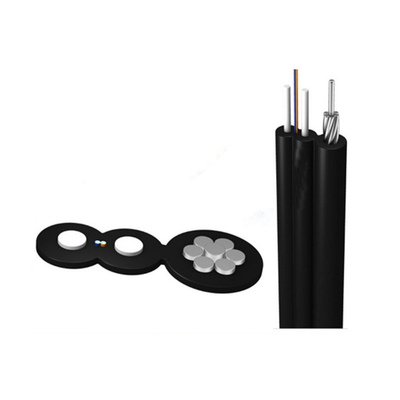

Outdoor Fibre Ftth Drop Cable 1 2 4 6 8 12 FO 1.2mm Steel Strand LSZH GJYXH
Description :

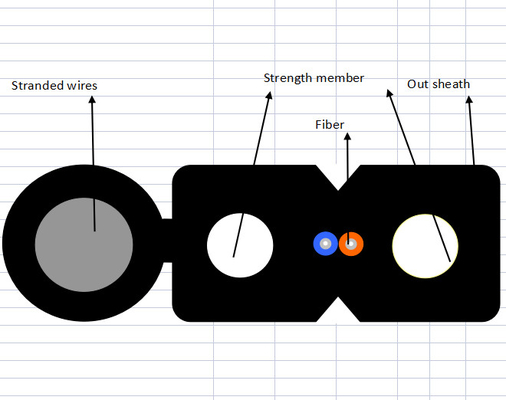

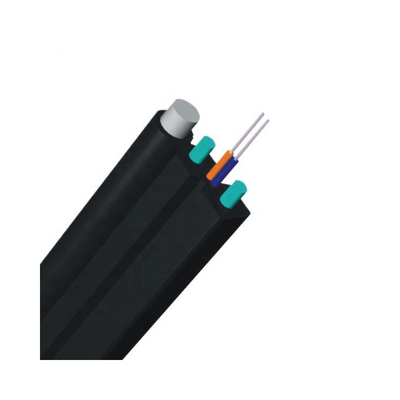

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wire are placed at the two sides. A steel wire 1.2mm or other size as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Features :
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
· Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
· Simple structure, light weight and high practicability.
· Novel flute design, easily strip and splice, simplify the installation and maintenance.
· Low smoke, zero halogen and flame retardant sheath.
Applications:
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 |
30 |
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
