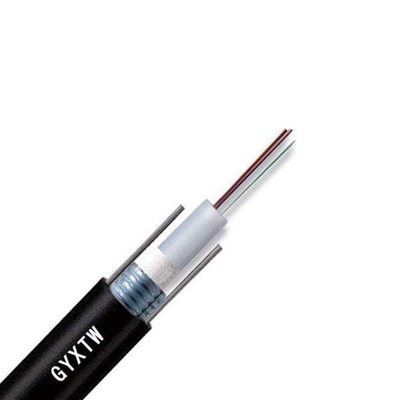

GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core

GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core
GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core
GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core

Large Image :  GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001,SGS
Model Number: GYXTW
Payment & Shipping Terms:
Minimum Order Quantity: 5.0km
Price: USD20-USD120/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-21 days
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 500Km per day

GYXTW Single Mode Armoured Optical Fiber Support Cable 4 Core

Description
Application: Telecommunication,Telecom,Network Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Number Of Conductors: 2,4,8,24 Type: Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Color: Black,Blue,Grey,Customized,Green Jacket: PE,MDPE,LSZH,PVC
Length: 2km , Or Customized Length Jacket Material: PE,LSZH,TPU,LSZH OR PVC
Oem: Available Installation: Self- Supporting Aerial,aerial,Aerial & Duct
Structure: Loose Tube,Unitube Operating Temperature: -40~75
Sheath Material: LSZH,HDPE,PVC Strength Member: Steel Wire
Fiber Color: Blue,Orange,Brown,Aqua,Grey,Customized
High Light:

G652D Armoured Optical Fiber Support Cable

,

GYXTW Optical Fiber Support Cable

GYXTW 4 Core Single Mode Armoured Optical Fiber Support Cable



Description:

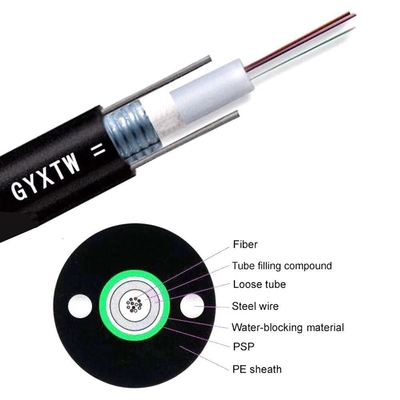

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.



Features:

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Storage / Operating Temperature: -40℃~+70℃



Application:

Usable in Duct / Aerial



Characteristics:

 1. Low dispersion and attenuation
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable

3. excellent mechanical and environmental properties
4. Compact structure and lightness, flexible and good bend-resistant performance
5. With small cable diameter, light cable weight, self-supporting
6. Operating Temperature : -40 ~ +60 C
The tube color is nature. And fiber color in the tube starts from No. 1 Blue
No.
1
2
3
4
5
6
Color
Blue
Orange
Green
Brown
Gray
White
No.
7
8
9
10
11
12
Color
Red
Black
Yellow
Purple
Pink
Aqua
No.
13
14
15
16
17
18
Color
Blue S100
Orange S100
Green S100
Brown S100
Gray S100
White S100
No.
19
20
21
22
23
24
Color
Red S100
Nature S100
Yellow S100
Purple S100
Pink S100
Aqua S100



Structure and Technical specifications of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
SN
Item
Unit
Value
1
No. of fibers
count
4/6
8/12
24
2
Tube diameter
count
2.2
2.4
3.2
3
Cable diameter(±5%)
mm
8.5
8.7
9.5
4
Cable weight(±10%)
kg/km
72
74
87
5
Short term tension
N
1500
6
Short term crush
N/100mm
1000

Main mechanical & environmental performance test of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
Item
Test Method
Acceptance Condition
Tensile Strength IEC 60794-1-2-E1
- Load: Short term tension
- Length of cable: about 50m
- Load time: 1min
- Fiber strain 0.6%
- No fiber break and no sheath damage.
Crush Test
IEC 60794-1-2-E3
- Load: Short term crush
- Load time: 1min
- Loss change 0.1dB at 1550nm
- No fiber break and no sheath damage.


Cable marking of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber

(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;

(4) Factory name;

(5) Date of manufacturing (year);
(6) Other requirements ;

The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.



FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

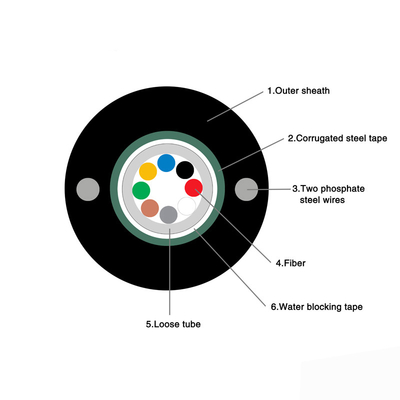

Drawings of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
