Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Product Name: | GYXTW Fiber Cable Outdoor Loose Tube Fiber Optic Cable Gyxtw G652d Fiber |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct | Structure: | Loose Tube,Unitube |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | GYXTW Drop Fiber Optic Cable,G652D 12 Cores Fiber Optic Cable |
||

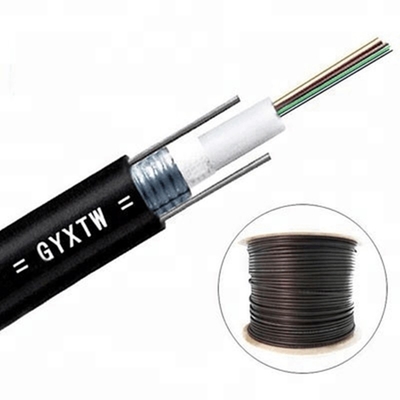

GYXTW 4 6 8 12 Cores Single Model Multi-mode Outdoor drop fiber optic cable
Description:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
|
SN
|
Item
|
Unit
|
Value
|
||
|
1
|
No. of fibers
|
count
|
4/6
|
8/12
|
24
|
|
2
|
Tube diameter
|
count
|
2.2
|
2.4
|
3.2
|
|
3
|
Cable diameter(±5%)
|
mm
|
8.5
|
8.7
|
9.5
|
|
4
|
Cable weight(±10%)
|
kg/km
|
72
|
74
|
87
|
|
5
|
Short term tension
|
N
|
1500
|
||
|
6
|
Short term crush
|
N/100mm
|
1000
|
||
|
Item
|
Test Method
|
Acceptance Condition
|
|
Tensile Strength IEC 60794-1-2-E1
|
- Load: Short term tension
- Length of cable: about 50m - Load time: 1min |
- Fiber strain 0.6%
- No fiber break and no sheath damage. |
|
Crush Test
IEC 60794-1-2-E3 |
- Load: Short term crush
- Load time: 1min |
- Loss change 0.1dB at 1550nm
- No fiber break and no sheath damage. |
Cable marking of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

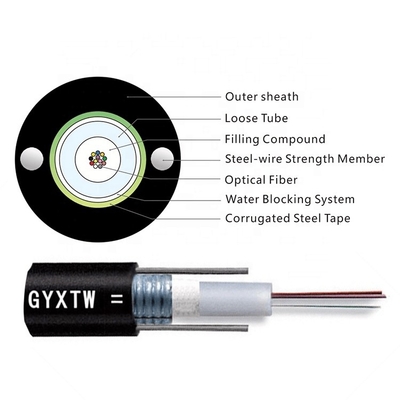

Drawings of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
