Product Details:
|
| Name: | Fiber Optic Cable 1 Core | Material: | LSZH Plastic/ Fiber |
|---|---|---|---|
| Central Strength: | FRP | Cable Type: | G657A1 |
| Operating Temperation: | -40℃ To 85℃ | No. Of Fiber: | 1 |
| Usage: | FTTH | Color: | Black/White |
| High Light: | Steel Messenger Core FTTH Drop Cable,4 Core FTTH Drop Cable,G657A1 FTTH Drop Fiber Optic Cable |
||
FTTH Drop Cable Steel Messenger Core 2 Core 4 Core Fibra Optica Drop Fiber Cable
Product Parameters

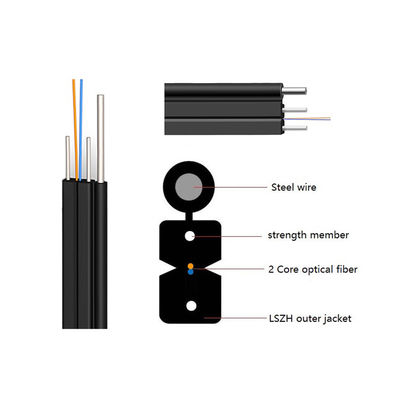

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
|
Item
|
GJYXFCH-1B6 Fiber Optic Drop Cable
|
|
Core
|
1 Core
|
|
Mode Type
|
SM
|
|
Cable Diameter
|
5.2*2.0mm
|
|
Color
|
Black or white
|
|
Sheath Material
|
LSZH
|
|
Messenger
|
available
|
|
Central Strength
|
FRP
|
|
Item
|
Technology parameter
|
|
Cable Type
|
Drop Cable
|
|
Cable Count
|
1 2 4 6 8 12
|
|
Fiber Color
|
Green, Yellow
|
|
Fiber Type
|
9/125 (G657A1)
|
|
Outer Sheath Color
|
Black or white
|
|
Sheath Material
|
LSZH
|
|
Cable Dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
|
Cable weight (Kg/km)
|
15
|
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
|
Attenuation (dB/km)
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
|
Short term tensile (N)
|
200; 600
|
|
Crush resistance (N/100mm)
|
1000; 2200
|
|
Operation temperature (℃)
|
-20~+70℃
|
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
