Product Details:
|
| Name: | Fiber Optic Cable 1 Core | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Central Strength: | FRP | Connector: | SM |
| Cable Type:: | G657A1 | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 1 | Usage: | FTTH |
| High Light: | GJYXFCH FTTH Drop Fiber Optic Cable,G657A FTTH Drop Fiber Optic Cable,SM FTTH Optical Fiber Cable |
||
GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
Product Description

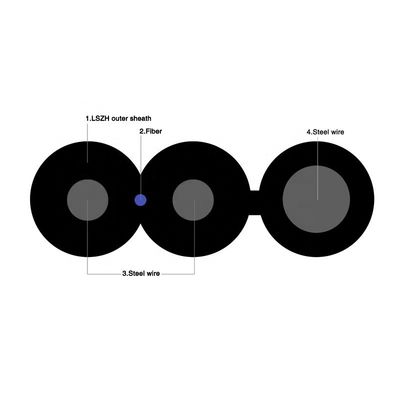

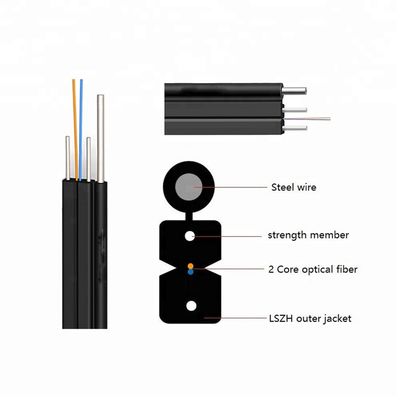

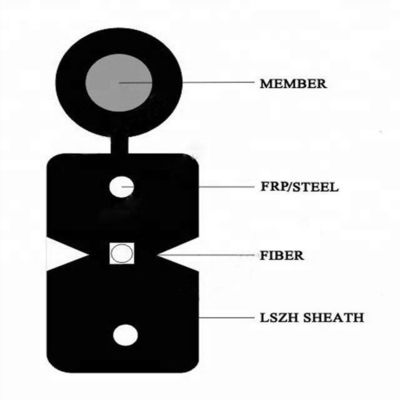

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
|
Item
|
GJYXFCH-1B6 Fiber Optic Drop Cable
|
|
Core
|
1 Core
|
|
Mode Type
|
SM
|
|
Cable Diameter
|
5.2*2.0mm
|
|
Color
|
Black or white
|
|
Sheath Material
|
LSZH
|
|
Messenger
|
available
|
|
Central Strength
|
FRP
|
|
Item
|
Technology parameter
|
|
Cable Type
|
Drop Cable
|
|
Cable Count
|
1 2 4 6 8 12
|
|
Fiber Color
|
Green, Yellow
|
|
Fiber Type
|
9/125 (G657A1)
|
|
Outer Sheath Color
|
Black or white
|
|
Sheath Material
|
LSZH
|
|
Cable Dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
|
Cable weight (Kg/km)
|
15
|
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
|
Attenuation (dB/km)
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
|
Short term tensile (N)
|
200; 600
|
|
Crush resistance (N/100mm)
|
1000; 2200
|
|
Operation temperature (℃)
|
-20~+70℃
|
