Product Details:
|
| Name: | Indoor Single Mode 2 Core 4 Core Ftth Drop Cable Fiber Optic Cable Figure 8 Indoor FTTH | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| High Light: | Indoor FTTH Figure 8 Fiber Optic Cable,Indoor FTTH Figure 8 Fiber Optic Cables,4 Core Indoor Drop Cable |
||
Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH
Description of Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH

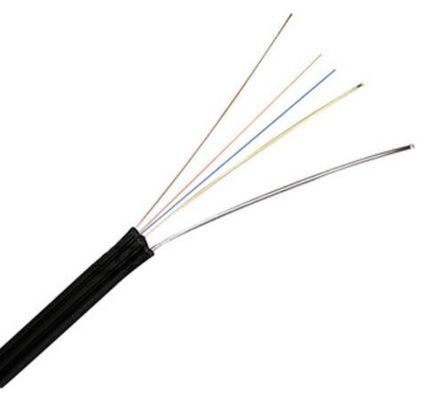

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features of Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Applications of Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH
-- FTTH system
-- Indoor riser level and plenum level cable distribution
-- Interconnect between instruments, communication equipments
| Structure | Unit | Parameter | |
| Color of the cable | Black/white | ||
| Fiber count | Fibers | 1-12 | |
| Diameter | mm | 3.0*2.0 | |
| Weight | Kg/km | Approx.8.2 | |
| Tensile strength | N | 800 | |
| Crush Resistance | N | 60 | |
| Bending Radius |
Dynamic | ≥20×Cable Diameter | |
| Static | ≥10×Cable Diameter | ||
| Operating Temperature | °c | -40 --- +60 | |
| No. of fiber | 1 | 2 | 3 | 4 |
| Color of fiber | Blue | Orange | Green | Brown |
Performance of Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 |
30 |
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.

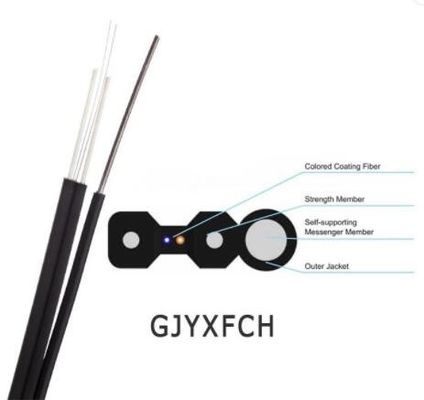

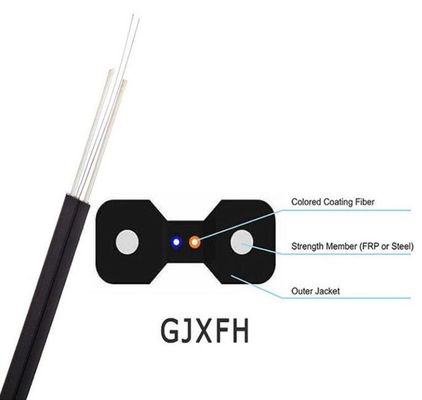

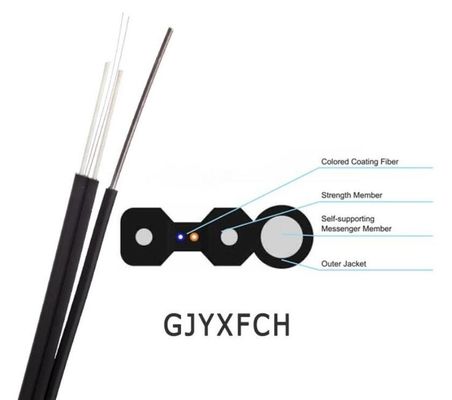

Drawings of Indoor single mode 2 core 4 core ftth drop cable fiber optic cable figure 8 indoor FTTH
