Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 0.6CM 6 Core Outdoor Fiber Optic Cable,GYXTW 0.6CM Outdoor Fiber Optic Cable,4 Core Armoured Fiber Optic Cable |
||

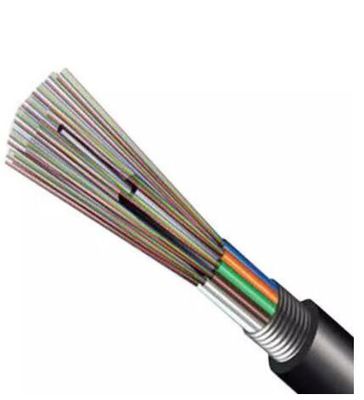

Description: GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable
"GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Features:
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length
| Cable model | Number of fibers |
Cable diameter mm |
Cable weight kg/km |
Allowable stretching force Long/short term N |
Allowable crushing force Long/short term N/100mm |
Bending radius Static/dynamic mm |
| GYXTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
Structure and Technical specifications of GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |

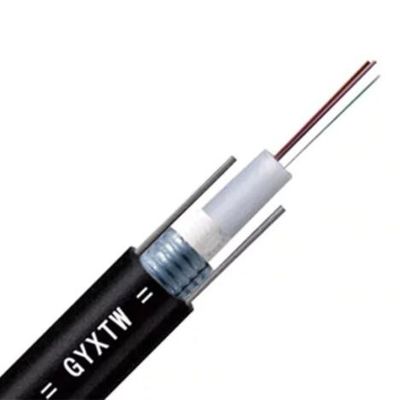

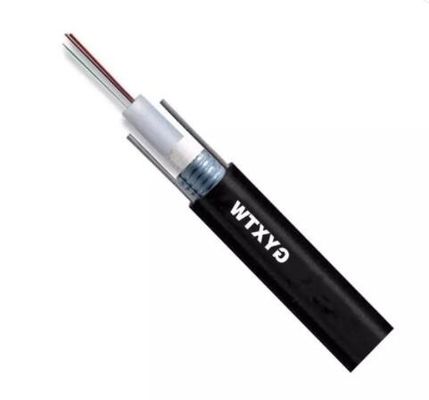

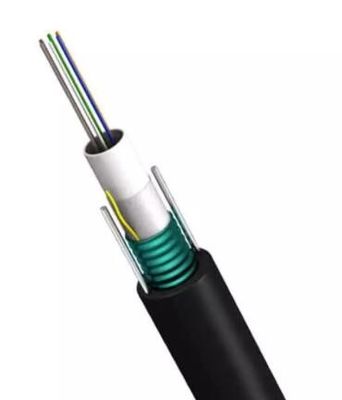

Drawings of GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable

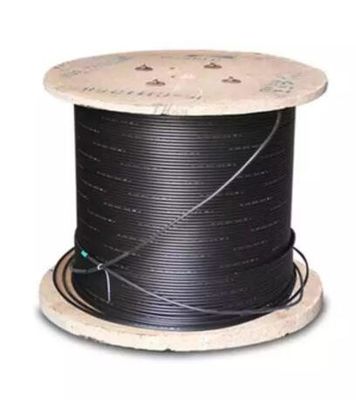

Package of GYXTW Single Mond Outdoor 0.6CM Diameter Armoured 4/6/8/12/ Cores Fiber Optic Cable
