Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | 4 8 12 Cores Outdoor Single Mode GYXTW Fiber Optic Cable For Communication |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 8 Core GYXTW Fiber Optic Cable,GYXTW 4 Core Fiber Optic Cable,12 Core GYXTW Outdoor Fiber Optic Cable |
||

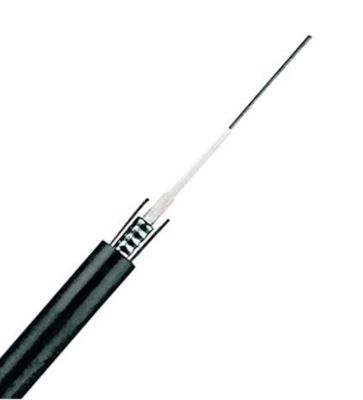

Description: 4 8 12 cores Outdoor Single mode GYXTW Fiber Optic Cable for communication

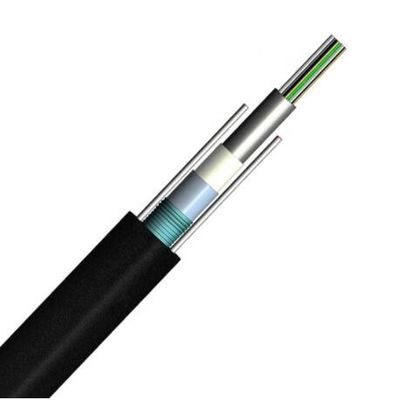

"4 8 12 cores Outdoor Single mode GYXTW Fiber Optic Cable for communication"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Characteristics of 4 8 12 cores Outdoor Single mode GYXTW Fiber Optic Cable for communication
. Good mechanical and temperature performance
. Special tube filling compound ensure a critical protection of fiber
. High strength loose tube that is hydrolysis resistant
. The following measures are taken to ensure the cable watertight:
. Loose tube filling compound, 100% cable core filling
. PSP/PAP enhancing moisture-proof
. Crush resistance and flexibility
|
Optocal Characteristics
|
|||||
|
|
G.652.D
|
G.655.D
|
50/125µm
|
62.5/125µm
|
|
|
Attenuation
|
@850nm
|
|
|
≤3.0dB/km
|
≤3.0dB/km
|
|
@1300nm
|
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|
|
@1310nm
|
≤0.36dB/km
|
≤0.40 dB/km
|
|
|
|
|
@1550nm
|
≤0.22dB/km
|
≤0.32 dB/km
|
|
|
|
|
Bandwidth
|
@850nm
|
|
|
≥500MHZ●KM
|
≥200MHZ●KM
|
|
@1300nm
|
|
|
≥1000MHZ●KM
|
≥600MHZ●KM
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
|
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |

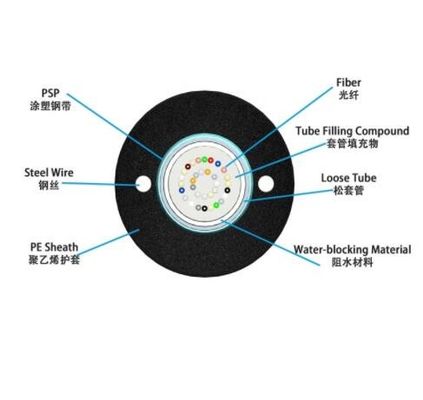

Drawings of 4 8 12 cores Outdoor Single mode GYXTW Fiber Optic Cable for communication

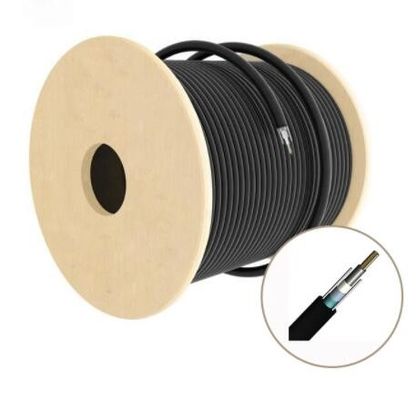

Package of 4 8 12 cores Outdoor Single mode GYXTW Fiber Optic Cable for communication
