Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48,96,128,288 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW 12 Core G652 G652d G657a G657a2 Fiber Optic Cable Outdoor |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum |
| Fiber Color: | Blue,Orange,Aqua,Grey,Customized | ||
| High Light: | G657a2 Outdoor Fiber Optic Cable,G652d 12 Core Fiber Optic Cable,G657a Outdoor Fiber Optic Cable |
||
Description: GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor
"GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Characteristics of GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. The following measures are taken to ensure the cable watertight:
4. Loose tube filling compound, 100% cable core filling
5. PSP/PAP enhancing moisture-proof
6. Crush resistance and flexibility
|
No. of cable
|
2~8
|
10~12
|
14~24
|
||
|
Fiber Model
|
G.652D
|
||||
|
Strength Member
|
Material
|
Steel Wire
|
|||
|
Diameter
(±0.05)mm
|
0.8
|
||||
|
Loose Tube
|
Material
|
PBT
|
|||
|
Diameter
(±0.06)mm
|
2.1
|
2.4
|
3.0
|
||
|
Thickness
(±0.03)mm
|
0.32
|
0.35
|
0.4
|
||
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
||
|
Water Blocking layer(Material)
|
Water Blocking Tape
|
||||
|
Armoring
|
Material
|
Steel Strip
|
|||
|
Thickness
(±0.03)mm
|
0.25
|
||||
|
Outer Sheath
|
Material
|
MDPE
|
|||
|
Thickness
(±0.2)mm
|
2.0
|
||||
|
Cable Diameter(±0.2)mm
|
8.0
|
8.3
|
9.0
|
||
|
Cable Weight(±5)kg/km
|
60
|
63
|
90
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|||
|
Under Maximum Tension
|
20.0×Cable-φ
|
||||
|
Temperature range
(℃)
|
Installation
|
-20~+60
|
|||
|
Transport&Storage
|
-40~+70
|
||||
|
Operation
|
-40~+70
|
||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |

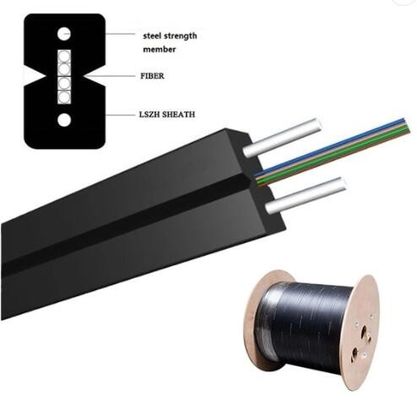

Drawings of GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor

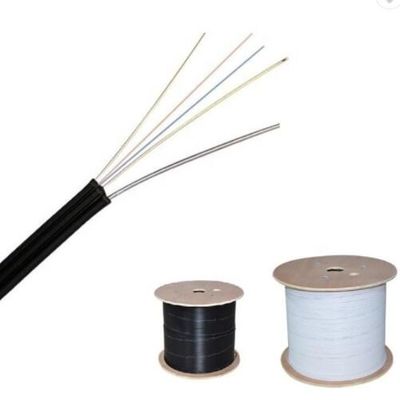

Package of GYXTW 12 Core g652 g652d g657a g657a2 fiber optic cable outdoor
