Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-96 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | Single Mode GYXTW Outdoor Aerial Optical Fiber Cable Uni-tube Armored Fiber Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |
Description: Single mode GYXTW outdoor aerial optical fiber cable uni-tube armored fiber optic cable
"Single mode GYXTW outdoor aerial optical fiber cable uni-tube armored fiber optic cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of Single mode GYXTW outdoor aerial optical fiber cable uni-tube armored fiber optic cable
1. Good mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fiber
3. Crush resistance and flexibility
4. The following measures are taken to ensure the cable watertight:
5. Loose tube filling compound, 100% cable core filling
6. PSP/PAP enhancing moisture-proof
7. High strength loose tube that is hydrolysis resistant
|
No. of cable
|
2~8
|
10~12
|
14~24
|
||
|
Fiber Model
|
G.652D
|
||||
|
Strength Member
|
Material
|
Steel Wire
|
|||
|
Diameter
(±0.05)mm
|
0.8
|
||||
|
Loose Tube
|
Material
|
PBT
|
|||
|
Diameter
(±0.06)mm
|
2.1
|
2.4
|
3.0
|
||
|
Thickness
(±0.03)mm
|
0.32
|
0.35
|
0.4
|
||
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
||
|
Water Blocking layer(Material)
|
Water Blocking Tape
|
||||
|
Armoring
|
Material
|
Steel Strip
|
|||
|
Thickness
(±0.03)mm
|
0.25
|
||||
|
Outer Sheath
|
Material
|
MDPE
|
|||
|
Thickness
(±0.2)mm
|
2.0
|
||||
|
Cable Diameter(±0.2)mm
|
8.0
|
8.3
|
9.0
|
||
|
Cable Weight(±5)kg/km
|
60
|
63
|
90
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|||
|
Under Maximum Tension
|
20.0×Cable-φ
|
||||
|
Temperature range
(℃)
|
Installation
|
-20~+60
|
|||
|
Transport&Storage
|
-40~+70
|
||||
|
Operation
|
-40~+70
|
||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |

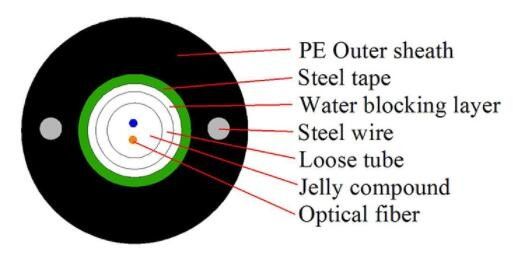

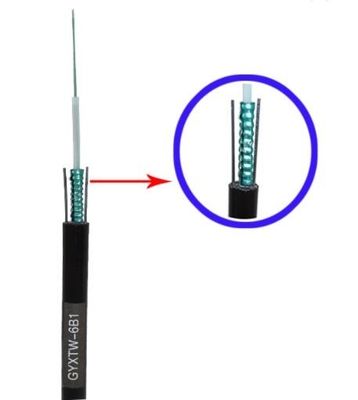

Drawings of Single mode GYXTW outdoor aerial optical fiber cable uni-tube armored fiber optic cable

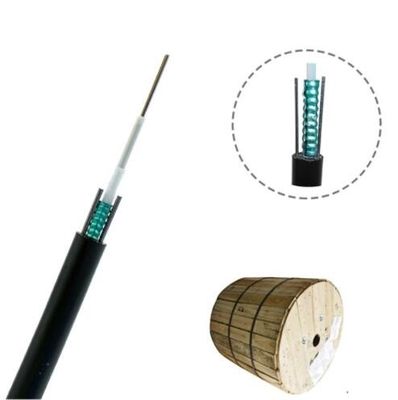

Package of Single Mode Outdoor Armoured GYXTW Fiber Optic Cable
More products customized
