Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 4A1B 4 Core Multimode Fiber Optic Cable,GYXTW Multimode Optical Cable,4 Core Multimode Optical Cable |
||

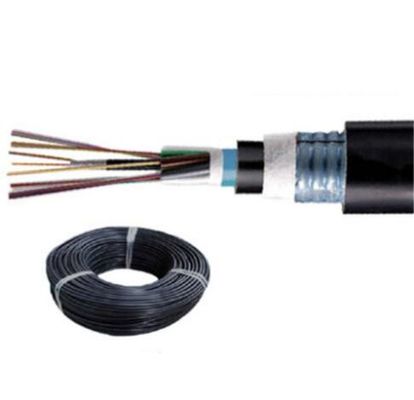

Description: GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
"GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
1. Good mechanical and temperature performance
2.Special tube filling compound ensure a critical protection of fiber
3. High strength loose tube that is hydrolysis resistant
4. The following measures are taken to ensure the cable watertight:
5. Loose tube filling compound, 100% cable core filling
6. PSP/PAP enhancing moisture-proof
7. Crush resistance and flexibility
|
Cable model
|
Number
of fibers
|
Cable
diameter mm
|
Weight
kg/km
|
Allowable stretching force Long/
short term N
|
Allowable crushing force Long/short term
N/100mm
|
Bending radius
Static/dynamic
mm
|
|
GYXTW-2~12
|
2~12
|
10.6
|
124
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-14~24
|
14~24
|
12.5
|
149
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-26~36
|
26~36
|
14.0
|
190
|
1000/3000
|
1000/3000
|
10D/20D
|
|
GYXTW-38~48
|
38~48
|
15.0
|
216
|
1000/3000
|
1000/3000
|
10D/20D
|
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
| Cable Type | Drum Length(KM) | Drum/Carton size (cm) | Gross weight/CTN (kgs) | KMs/20ft |
| GYXTW 2~12F | 2 | 70*70*60 | 160 | 144 |

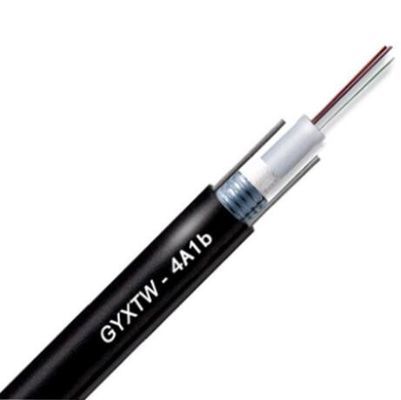

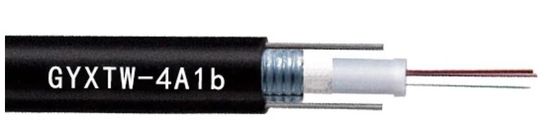

Drawings of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber

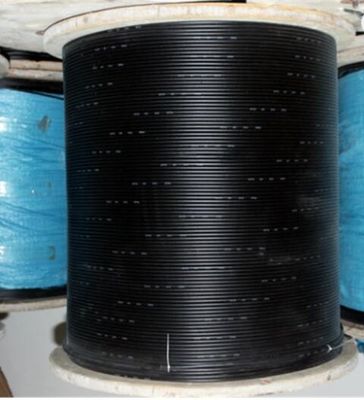

Package of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
