Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | Submarine Single Mode Direct Buried GYTA33 24 48 72 Core Fiber Optical Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 24 Core GYTA33 Submarine Fiber Optic Cable,72 Core Direct Burial Fiber Optic Cable,GYTA33 Direct Burial Fiber Optic Cable |
||
Description of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
| Fiber count | 2~30 | 32~36 | 38~60 | 62~72 | 2~36 | 38~72 | |
| CSM/Steel wire (mm) | --/1.5 | --/2.0 | --/1.8 | 2.4/1.8 | --/2.0 | 2.4/1.8 | |
| Element mumber | 5 | 6 | 5 | 6 | 6 | 6 | |
| Max. cores in tube | 6 | 6 | 12 | 12 | 6 | 12 | |
| Diameter of inner sheath | 8.3 | 8.8 | 9.1 | 9.7 | 10.5 | 10.5 | |
| Steel wire diameter and No. | Φ1.0/28 | Φ1.0/29 | Φ1.0/30 | Φ1.0/32 | Φ1.5/24 | Φ1.5/24 | |
| Cable diameter approx (mm) | 14.3 | 14.8 | 15.1 | 15.7 | 17.5 | 17.5 | |
| Weight approx (kg/km) | 315 | 328 | .340 | 360 | 520 | 520 | |
| Tensile strength (N) | Long term | 4000 | 10000 | ||||
| Short term | 10000 | 2000 | |||||
| Crush Resistence(N/100mm) | Long term | 3000 | |||||
| Short term | 5000 | ||||||
| Bending Radius (mm) | Dynamic | ≥30 ×Dia. Of cable | |||||
| Static | ≥15×Dia. Of cable | ||||||
| Operating Temperature (°C) | -40°C ~+ 70°C | ||||||
| Application | Directly burial and Under water | ||||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Cable marking of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

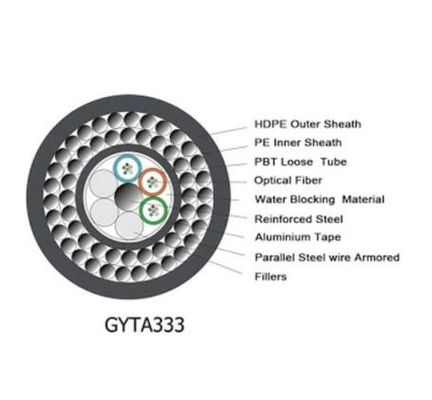

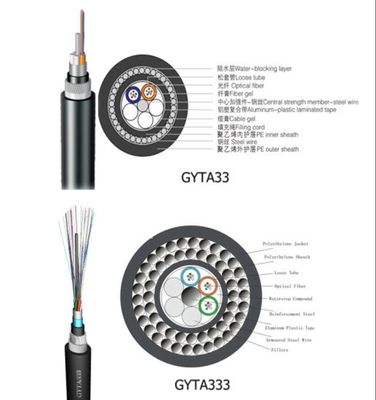

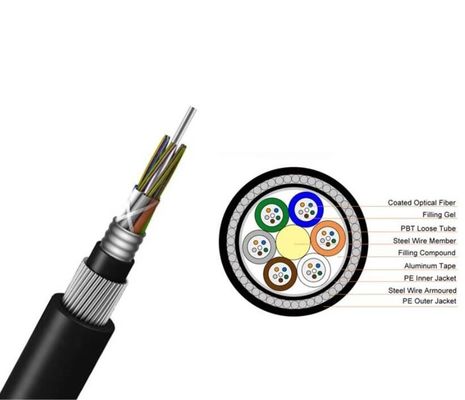

Drawings of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
