Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-24 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |

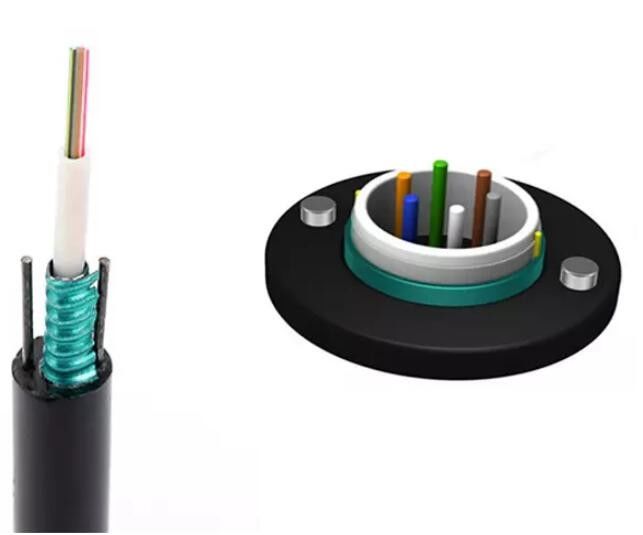

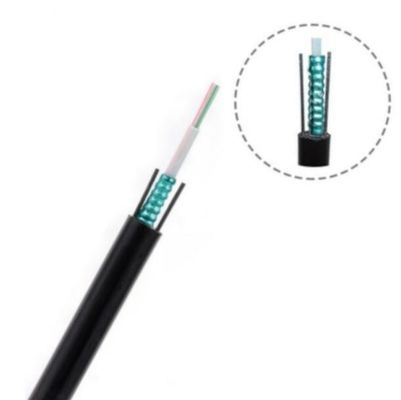

Description: GYXTW Uni-tube Armored single mode fiber optic cable
Characteristics of GYXTW Uni-tube Armored single mode fiber optic cable
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
|
No.
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Color
|
Blue
|
Orange
|
Green
|
Brown
|
Gray
|
White
|
|
No.
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Red
|
Black
|
Yellow
|
Purple
|
Pink
|
Aqua
|
|
No.
|
13
|
14
|
15
|
16
|
17
|
18
|
|
Color
|
Blue S100
|
Orange S100
|
Green S100
|
Brown S100
|
Gray S100
|
White S100
|
|
No.
|
19
|
20
|
21
|
22
|
23
|
24
|
|
Color
|
Red S100
|
Nature S100
|
Yellow S100
|
Purple S100
|
Pink S100
|
Aqua S100
|
|
No. of cable
|
2~8
|
10~12
|
14~24
|
|
|
Fiber Model
|
G.652D
|
|||
|
Strength Member |
Material
|
Steel Wire
|
||
|
Diameter(±0.05)mm
|
0.8
|
0.8
|
0.8
|
|
|
Loose Tube |
Material
|
PBT
|
||
|
Diameter(±0.06)mm
|
2.1
|
2.4
|
2.8
|
|
|
Thickness(±0.03)mm
|
0.32
|
0.35
|
0.4
|
|
|
The Max.Core NO./Tube
|
8
|
12
|
24
|
|
|
Water Blocking layer(Material)
|
Water Blocking Tape
|
|||
|
Armoring |
Material
|
Steel Strip
|
||
|
Thickness(±0.03)mm
|
0.25
|
|||
|
Outer Sheath |
Material
|
MDPE
|
||
|
Thickness(±0.2)mm
|
2
|
|||
|
Cable Diameter(±0.2)mm
|
7.9
|
8.1
|
8.5
|
|
|
Cable Weight(±5)kg/km
|
60
|
63
|
68
|
|
|
Min. bending radius |
Without Tension
|
10.0×Cable -φ
|
||
|
Under Maximum Tension
|
20.0×Cable -φ
|
|||
|
Temperature range(℃)
|
Installation
|
-20~+60
|
||
|
Transport&Storage
|
-40~+70
|
|||
|
Operation
|
-40~+70
|
|||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Cable marking of GYXTW Uni-tube Armored single mode fiber optic cable
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

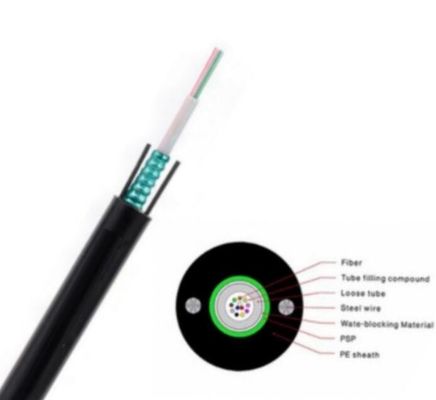

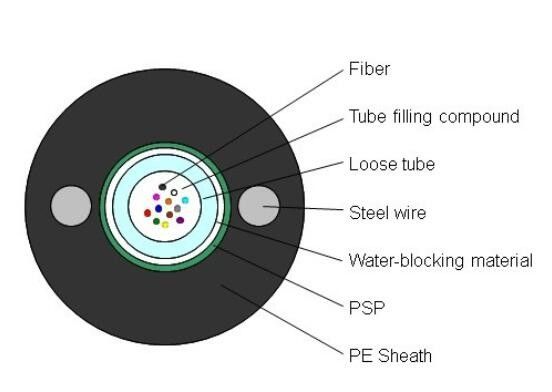

Drawings of GYXTW Uni-tube Armored single mode fiber optic cable

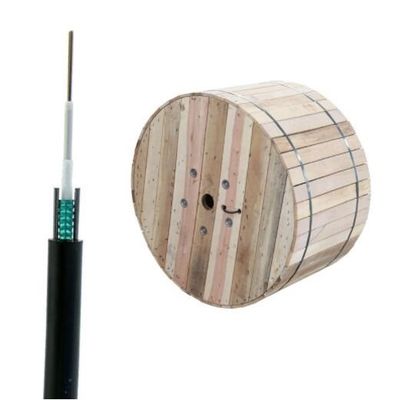

Package of GYXTW Uni-tube Armored single mode fiber optic cable
