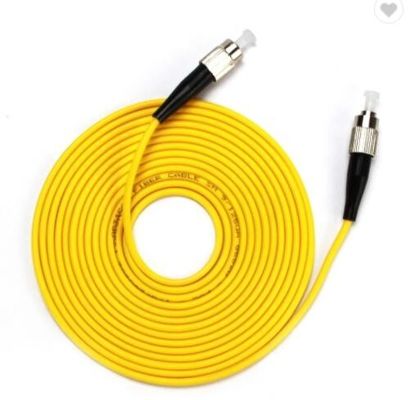

Product Details:
|
| Product Type: | Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m/60m/80m/100m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | LSZH Fiber Optic Patch Cord,G652D Fiber Optic Patch Cord,3m G652D Fiber Cable |
||
Support Ordering Parameters

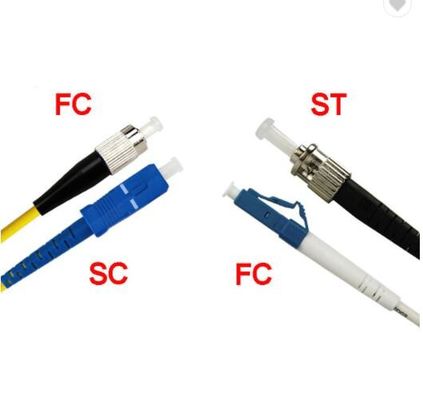

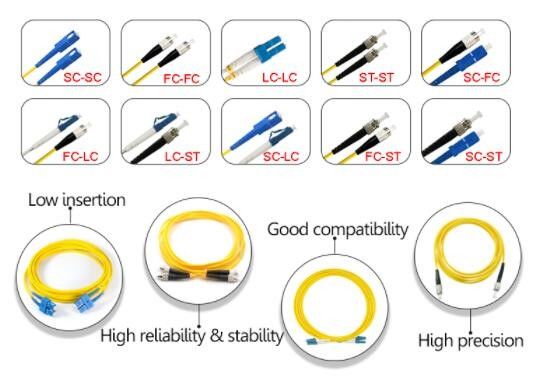

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good echangeability Good Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G657A) / MM(OM1/0M2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310+30/1550+30nm / 850+30/1300+30nm |
| Insertion Loss(dB) | <0.25dB / <0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) / (PC/UPC) |
| Return Loss(dB) | >50dB(PC/UPC) />40dB |
| TIA/ELA-455-107 | >60dB (APC) />40dB |
| Exchangeability | <20dB |
| Cable Assemblies | Pigtail/Simplex/Dupiex/Fan-out Patchcord |
| Operating Temperature(°C) | -10~+70 |
| Storage Temperature(°C) | -40~+85 |
| Package | 1unit/bag |
Other type
