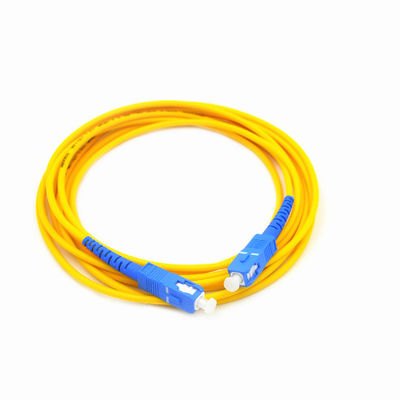

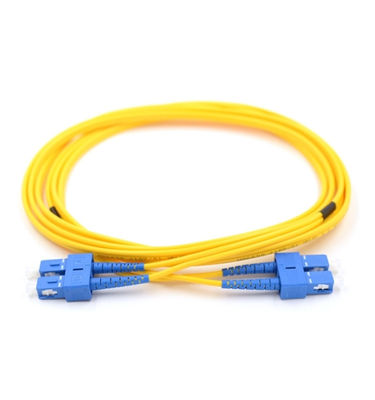

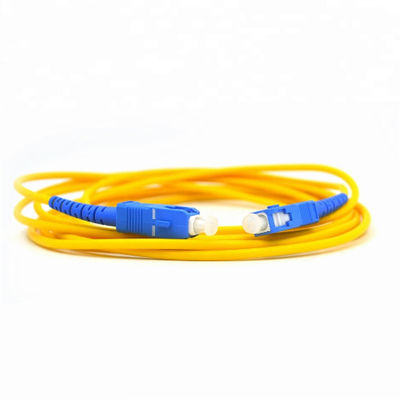

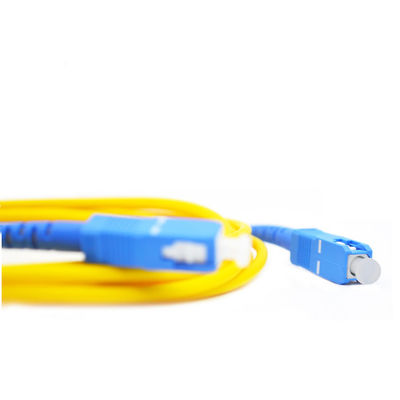

Product Details:
|
| Product Type: | FTTH Drop Cable Patchcord | Quality Control: | 100% Test Before Delivery |
|---|---|---|---|
| Fiber Type: | Singlemode | Inserion Loss: | <0.2dB |
| Operate Temperature: | -40℃~75℃ | Jacket Material: | LSZH |
| Certification: | ISO 9001/CE/ROHS | Fiber Count: | Simplex |
| Application: | FTTH System | Wavelength: | 850nm/1310nm/1550nm |
| Highlight: | 1.2mm Om1 Multimode Fiber Optic Patch Cord,1.2mm Om3 Multimode Fiber Optic Patch Cord,1.2mm Om3 Patch Cord |
||
Optical Feature:
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance | IL(dB) | 1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature | +85℃,168H | 0.2 | |||
| Temperature cycle | -40~+75℃,21cycle,168H | 0.2 | ||||
| Humidity thermal(Fixed) | 5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle | 10~+65℃,95%R.H.,21 cycle,168H | 0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping | 1.5 height, 8 times | 0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 |
||||
