Indoor Outdoor FTTH Sc Upc Fiber Optic Cable Patch Cord

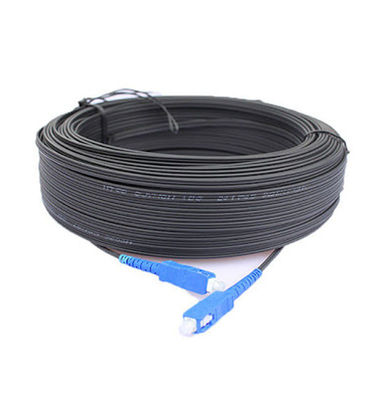

Large Image : Indoor Outdoor FTTH Sc Upc Fiber Optic Cable Patch Cord

Product Details:

Place of Origin:	China
Brand Name:	Weiroct
Certification:	ISO-9001/CE/ROHS
Model Number:	FTTH

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD
Packaging Details:	250pcs/Carton
Delivery Time:	5~20 DAYS
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/day

Contact Now

Indoor Outdoor FTTH Sc Upc Fiber Optic Cable Patch Cord

Description

Product Type:	FTTH Drop Cable Patchcord	Quality Control:	100% Test Before Delivery
Fiber Type:	SC APC	Inserion Loss:	<0.2dB
Operate Temperature:	-40℃~75℃	Certification:	ISO 9001/CE/ROHS
Fiber Core:	Simplex	Application:	Telecommunication
Wavelength:	1310/1550nm	Color:	Black Or Customized
Highlight:	FTTH Fiber Optic Cable Patch Cord , Sc Upc Fiber Optic Cable Patch Cord , FTTH Sc Upc Patch Cord

Waterproof Outdoor FTTH Singlemode Optical Connector SC/APC Fiber Optic Patchcord

Indoor/Outdoor Optical Fiber Sc Upc Ftth Fiber Optic Drop Cable Patch Cord

Description:

The fiber optic drop cable patch cord will not get damage even it is stepped byan adult, and they are anti-rodents, when they use such armored fiber optic patchcords, people do not need to worry that the rodent animals like the rats may bite the cables and make them broken.

Armored fiber optic patchcord can be made similar outer diameter with the standard patchcords, this make them space saving. What is more, they can be with different jacket colors and jacket types,and the armored fiber optic patchcords are actually light weight, the armored fiber optic patchcords can be with SC, ST, FC,LC, MU,SC/APC, ST/APC,FC/APC,LC/APC etc types of terminations.

Features:

General purpose and standard stock items

Lightweight

Pliable

Non-stretch

High pulling load strength

Resists lateral pressure

Excellent bending characteristics

Patchcord Specifications:

Parameters Singlemode Multimode

Insertion Loss ≤0.3dB ≤0.3dB

Return Loss ≥50dB(APC≥60dB)

Operating Temperature -40℃~+85℃ -40℃~+85℃

Optical fiber mechanical performance:

TEST report	Indicator
Screening level (%)	≥2.0
Minimum bending radius (mm)	10 ( G657A1 )
Coating stripping force (N)	Peak 1.3≤F≤8.9; Average 1≤F≤5
Static fatigue index (nd)	≥20
Dynamic tensile strength (Gpa)	≥3.8
Single core secondary coating diameter	250um

Tag:

Contact Person: Geng

Tel: +86 18971127560
