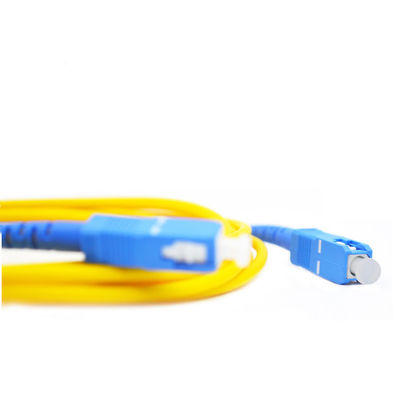

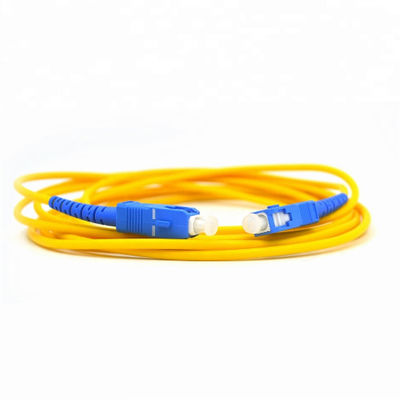

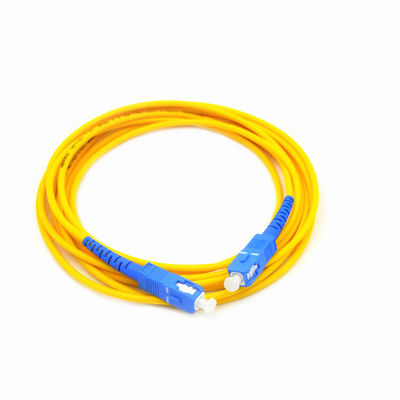

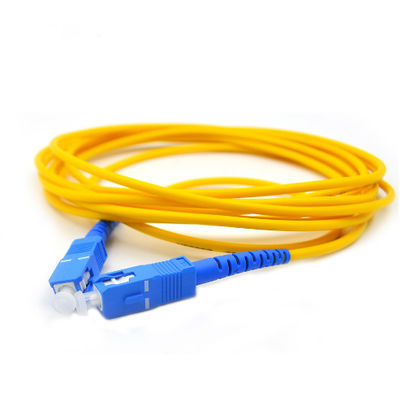

Product Details:
|
| Model Number: | SC-SM | Product Name: | Patchcord |
|---|---|---|---|
| Jacket Material: | PVC | Ferrule Material: | Ceramic |
| Package: | 1Unit/bag | Storage Temperature: | 40 ~ +85 |
| Operate Temperature: | 10~ + 70 | Connector Type: | SC |
| High Light: | FTTH Single Mode Fiber Patch Cord,1 Cord Single Mode Fiber Patch Cord,SC UPC To SC UPC Fiber Patch Cord |
||
Product Description:
Fiber Optic Patch Cable is also known as Fiber Optic Jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminated with different connectors on the ends.
For the Fiber Patch Cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.
We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables
here, even we supply MPO/MTP fiber cables.Our Fiber Patch Cables are standard terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends.
Features :
Compliant with international standards such as ANSI, Bellcore, TIA/EIA, IEC, also accord with the industrial standards of Telecom in China.
Realize the active link of optic fiber transmission.
Low insertion loss and high return loss.
Excellent repeatability and interchangeability.
Application:
CATV
LAN and Access Network
Telecom, Gigabit Data Network
Testing and Medical equipments
Industry and Military applications
Specifications:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.2dB (PC/UPC/APC) |
≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 |
≥50dB(PC/UPC) ≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| All values specified are with connectors. | ||
