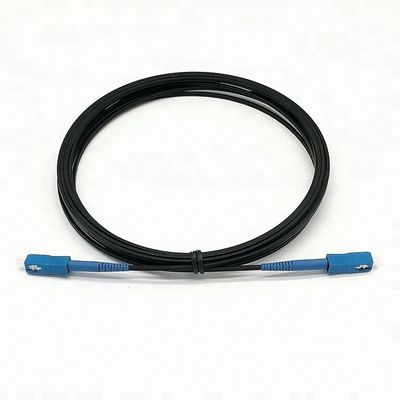

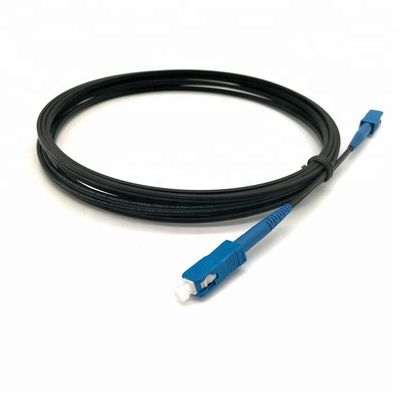

1 Core FTTH SC Drop Cable Fiber Optic Patch Cord

Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

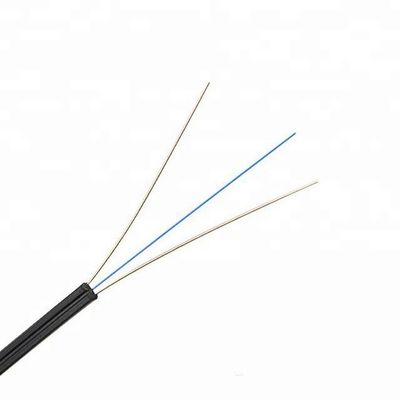

2.0x3.0mm FTTH drop cable, 2 pcs FRP, bare colored fiber G675A2 inside, LSZH or PVC jacket, assembled with SC -SC

Features :

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement;

5: Typical IL≤0.20dB;

6. Max IL≤0.25dB;

7. RL SM≥50dB, APC≥60dB, MM≥20dB.

8. Durability(500mating time): IL≤0.25dB.

9. Operating / storage temperature:- 20~+70°C

Application :

1; Telecommunication networks;

2; Local area networks; CATV;

3; Active device termination;

4; Data center system networks;
