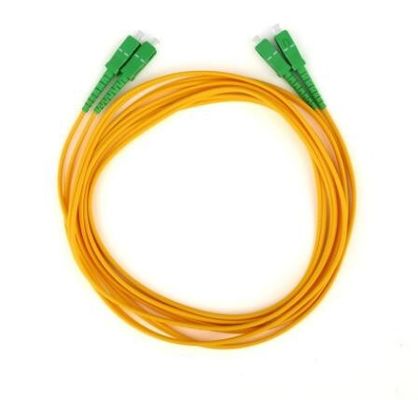

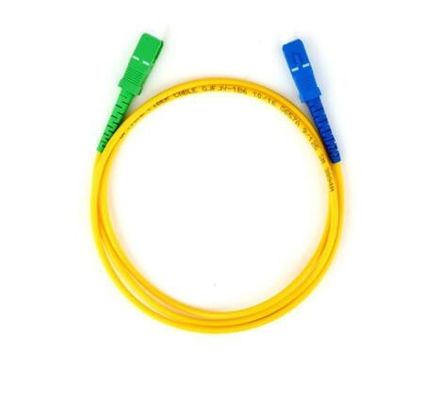

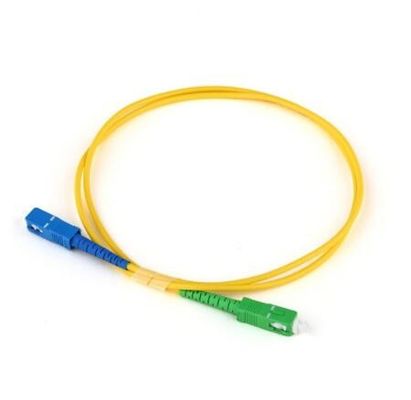

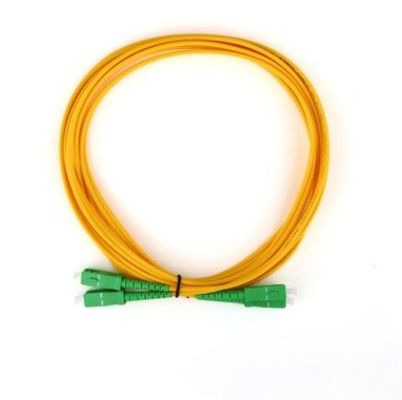

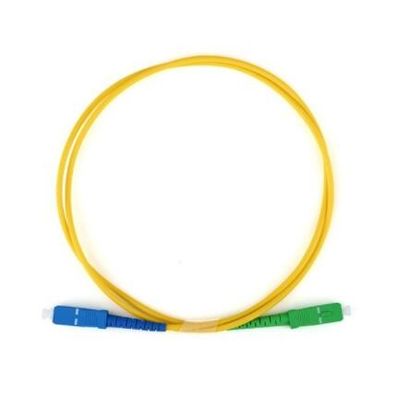

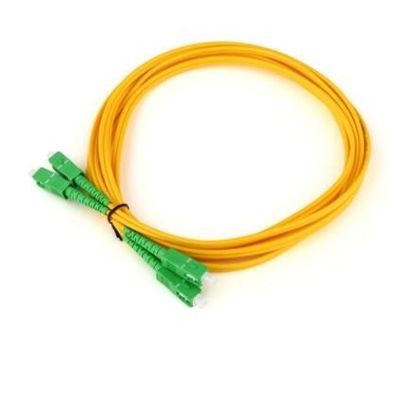

Product Details:
|
| Product Type: | SC/APC To SC/APC Singlemode Simplex LSZH Fiber Optic Patch Cord | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m/60m/80m/100m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | G657A Fiber Optic Patch Cord,APC G652D Fiber Optic Patch Cord,PVC G657A Fiber Cable |
||
* The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.
Features of SC/APC to SC/APC Singlemode Simplex LSZH fiber optic patch cord:
1. Low insertion loss and back reflection loss,
2. Good repeatability,
3. Good interchangeability
4. High temperature stability
5. Good durability
6. Superior Quality Standard PC/UPC/APC Polishing
|
Item
|
Unit
|
LC/SC/FC/ST Fiber Patch Cord
|
||||
|
SM
|
MM
|
|||||
|
Fiber Diameter
|
UM
|
9/125
|
65.5/125
|
50/125
|
||
|
Polishing
|
|
PC
|
UPC
|
APC
|
PC
|
PC
|
|
Insertion Loss
|
dB
|
≤0.2
|
≤0.15
|
≤0.2
|
≤0.1
|
≤0.1
|
|
Return Loss
|
dB
|
≥55
|
≥50
|
≥60
|
≥35dB
|
≥35dB
|
|
Insert-pull Test
|
dB
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.15
|
≤0.15
|
|
Interchangeability
|
dB
|
≤0.1
|
≤0.1
|
≤0.15
|
≤0.1
|
≤0.1
|
|
Temperature Range
|
℃
|
-40~+80
|
||||
|
Durability(1/Matings)
|
≥1000
|
|||||
|
Tensile Strength (N)
|
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
|
|||||
|
Fiber
|
9/125um, 50/125um,62.5/125um,ect
|
|||||
|
Diameter
|
0.9mm 2.0mm, 3.0mm etc
|
|||||
|
Cores
|
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
|
|||||
Other type
