Product Details:
|
| Product Type: | SC/APC To SC/APC Singlemode Simplex LSZH Fiber Optic Patch Cord | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m/60m/80m/100m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | Simplex LSZH Fiber Optic Cable,Single Mode LSZH Fiber Optic Cable,SC/APC To SC/APC LSZH Fiber Cable |
||

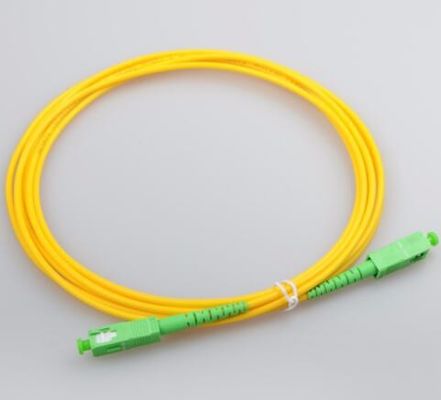

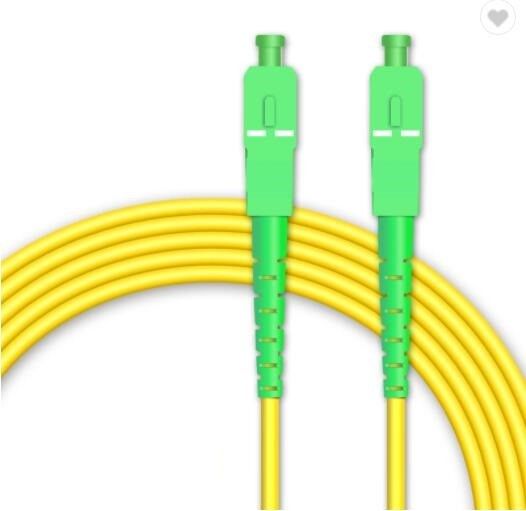

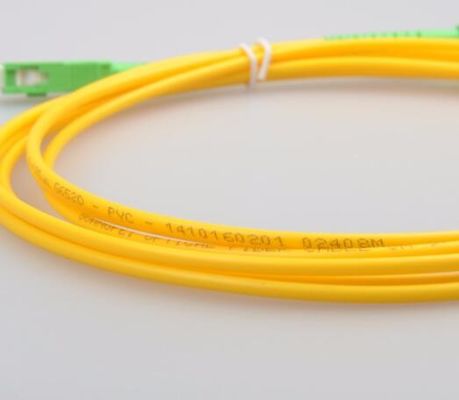

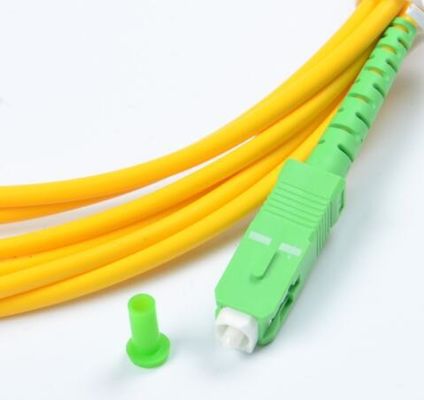

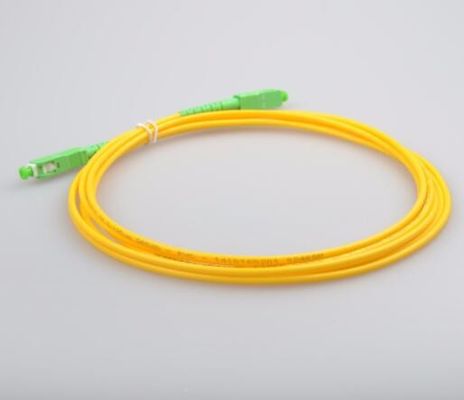

High quality SC APC - SC APC G657A1 Fiber Optic Patch Cable Simplex 3.0mm LSZH White 2m,3m,5m,7m,9m,10m,15m,20m,25m..
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Optical Specifications
| Connector | SC/APC to SC/APC | Jacket OD(mm) | 2.8mm |
| Fiber Mode | 9/125μm, BIF G657A1 | Jacket Color | White; |
| Polish | APC | Wavelength | SM:1310/1550nm |
| Cable Type | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature |
-45~85°C |
Note:
(1) The fiber optic patch cords are available in all connector styles
(2) Various color cable available upon customers' request
(3) OS1(9/125um), OM1(62.5/125um), OM2(50/125um) and OM3(50/125um) are available
(4) Any length is available upon request
(5) For jacket, PVC(Riser) is normal and LSZH & Plenum are available
(6) For cable type G655 & G657 are also available
Other type
