Product Details:
|
| Product Type: | 0.9mm 2.0mm 3.0mm 9/125um Singlemode Simplex Optical Patch Cord Fiber 1 Meter SC/APC | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m/60m/80m/100m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | Singlemode SC APC Patch Cord,9/125um SC APC Patch Cord,3.0mm Fiber Optic Patch Cord |
||
1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all
your interconnection needs. They are available in any length .
2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and
100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested
to meet Telcordia GR326-CORE.

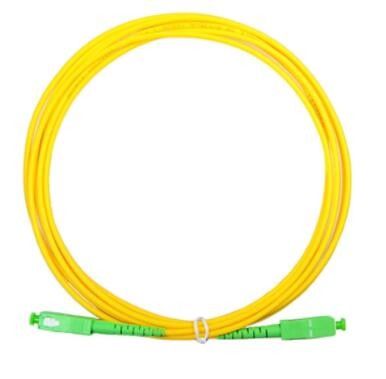

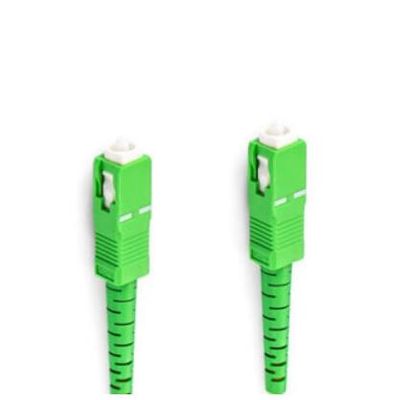

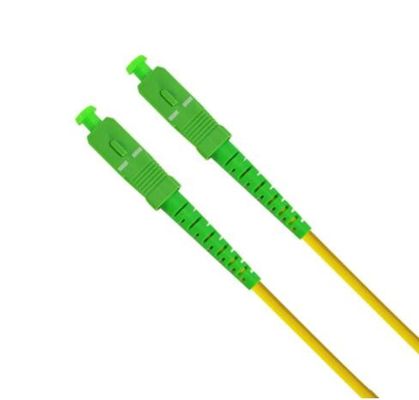

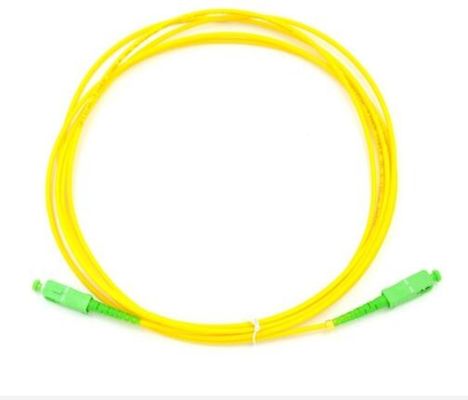

Features of 0.9mm 2.0mm 3.0mm 9/125um Singlemode Simplex Optical Patch Cord Fiber 1 Meter SC/APC:
1. Low insertion loss and back reflection loss,
2. Good repeatability,
3. Good interchangeability
4. High temperature stability
5. Good durability
6. Superior Quality Standard PC/UPC/APC Polishing
Applications of 0.9mm 2.0mm 3.0mm 9/125um Singlemode Simplex Optical Patch Cord Fiber 1 Meter SC/APC:
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G657A) / MM(OM1/0M2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC |

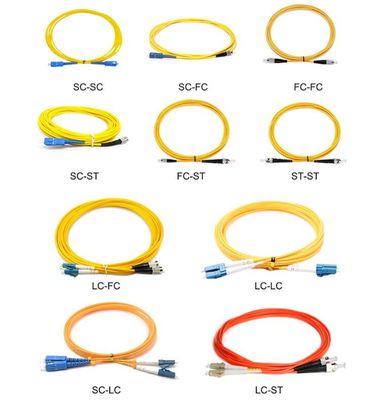

| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310+30/1550+30nm / 850+30/1300+30nm |
| Insertion Loss(dB) | <0.25dB / <0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) / (PC/UPC) |
| Return Loss(dB) | >50dB(PC/UPC) />40dB |
| TIA/ELA-455-107 | >60dB (APC) />40dB |
| Exchangeability | <20dB |
| Cable Assemblies | Pigtail/Simplex/Dupiex/Fan-out Patchcord |
| Operating Temperature(°C) | -10~+70 |
| Storage Temperature(°C) | -40~+85 |
| Package | 1unit/bag |
Other type
