Product Details:
|

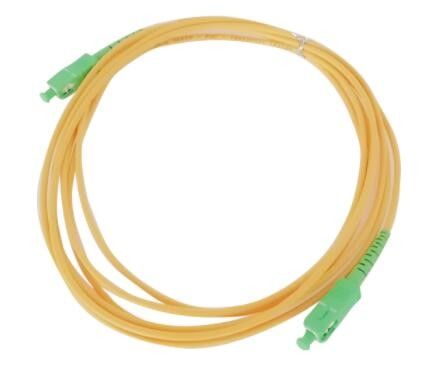

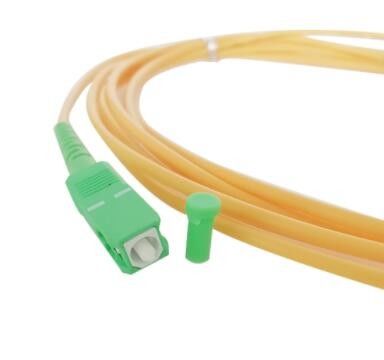

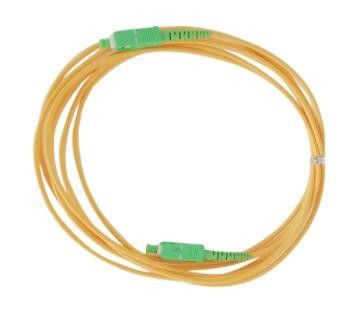

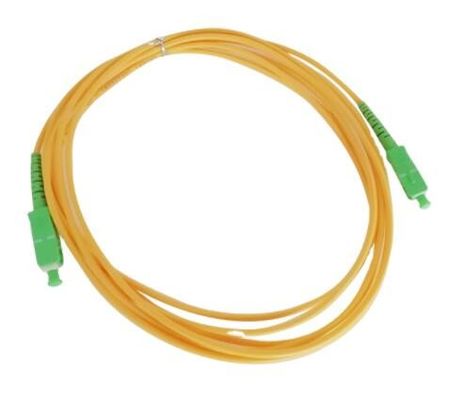

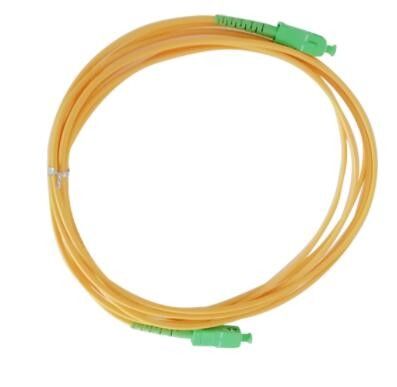

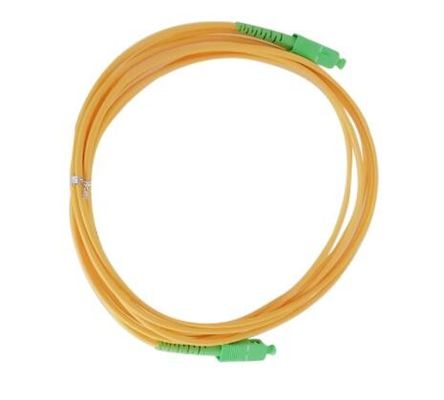

| Product Type: | FTTH Single Mode Simplex SC/ APC 9/125 2M 3M Fiber Optic Patchcord | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m/60m/80m/100m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | 12F Single Mode Patch Cord,24F Single Mode Patch Cord,SC APC To SC APC Patch Cords |
||
* The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.
Features of FTTH Single Mode Simplex SC/ APC 9/125 2M 3M fiber optic patchcord:
1. Low insertion loss and back reflection loss,
2. Good repeatability,
3. Good interchangeability
4. High temperature stability
5. Good durability
6. Superior Quality Standard PC/UPC/APC Polishing
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G657A) / MM(OM1/0M2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310+30/1550+30nm / 850+30/1300+30nm |
| Insertion Loss(dB) | <0.25dB / <0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) / (PC/UPC) |
| Return Loss(dB) | >50dB(PC/UPC) />40dB |
| TIA/ELA-455-107 | >60dB (APC) />40dB |
| Exchangeability | <20dB |
| Cable Assemblies | Pigtail/Simplex/Dupiex/Fan-out Patchcord |
| Operating Temperature(°C) | -10~+70 |
| Storage Temperature(°C) | -40~+85 |
| Package | 1unit/bag |
