Product Details:
|

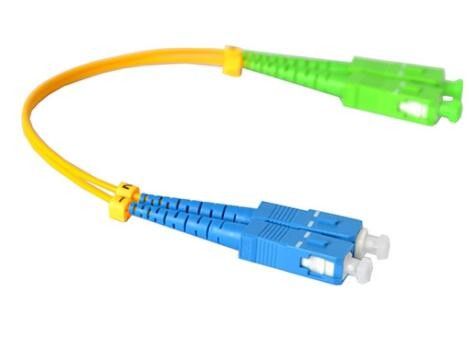

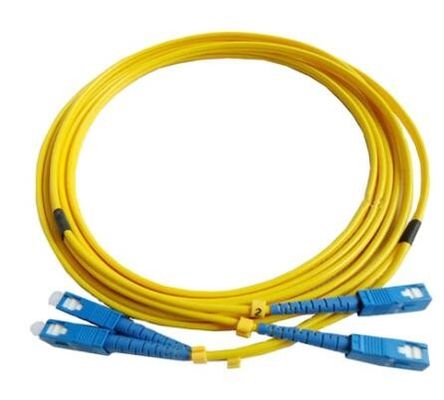

| Product Type: | SC/UPC To SC/UPC Connector Duplex SM DX Optic Fiber Patch Cords | Use: | FTTH |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Connector Type: | SC/LC/FC/ST/MTRJ/MU |
| Cable O.D.: | 2.0/3.0mm | Fiber Mode: | OM1 |
| Fiber Core: | 12F, 24F | Cable Length: | 1m/3m/5m/15m/50m Or Customized |
| Wavelength: | 1310/1550nm | Quality Control: | 100% Test Before Delivery |
| High Light: | SM DX Fiber Optic Cable,FTTH DX Fiber Optic Cable,SC/UPC To SC/UPC FTTH Cable |
||
* The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.
Features of SC/UPC to SC/UPC connector duplex SM DX optic fiber patch cords:
1. Low insertion loss and back reflection loss,
2. Good repeatability,
3. Good interchangeability
4. High temperature stability
5. Good durability
6. Superior Quality Standard PC/UPC/APC Polishing
| Parameter | Type | PC | SPC | UPC | APC |
| Insertion loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.3dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Mating Durability 500 timer | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Temperature Stabiility-40℃~75℃ | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Operating Temperature | -40℃~75℃ | ||||

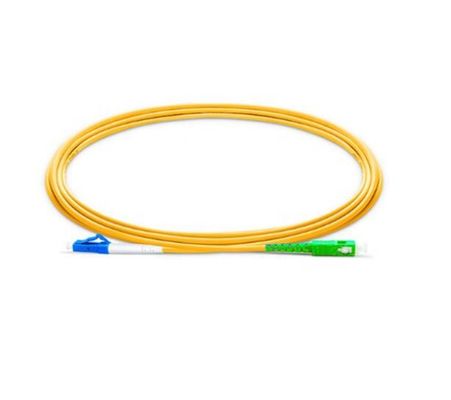

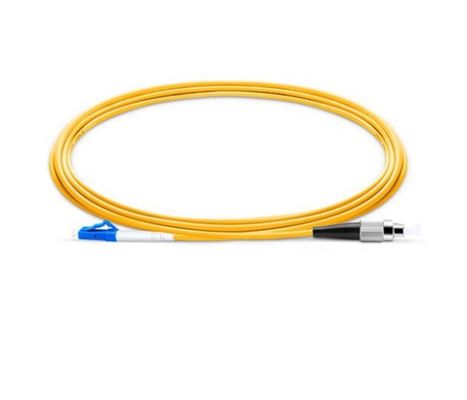

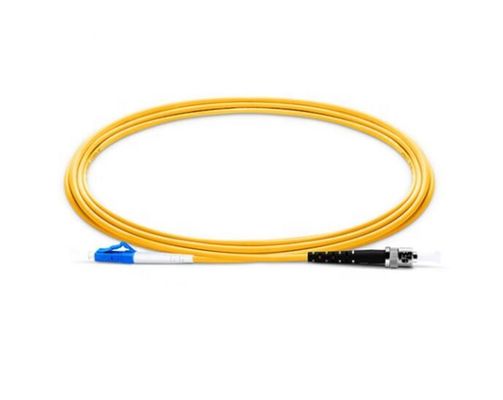

Other type
