Product Details:
|
| Type: | FTTx Solutions | No.of Fiber: | 1 |
|---|---|---|---|
| Use: | FTTx | Fiber Type: | G657A/G652D |
| Insertion Loss: | <0.2dB | Return Loss: | <55dB |
| Operate Temperature: | -40℃~75℃ | Fiber Count: | Simplex/Duplex |
| Application: | FTTH System | Material: | PVC/LSZH |
| High Light: | G652d LC SC Fiber Patch Cable,2.0mm LC SC Fiber Patch Cable,2.0mm Single Mode Fiber Patch Cable |
||

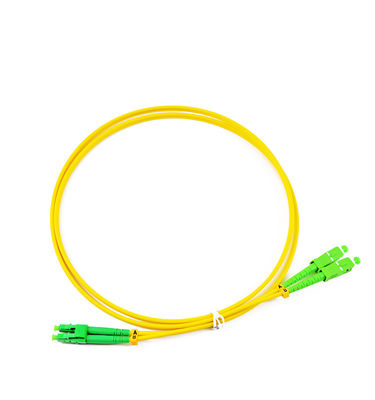

Single Mode Fiber Optical Cable G652d 2.0mm Lc-Sc Patchcord
Description:
SC cable assemblies are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). SC cable assemblies are well suited for high-density applications. The SC connector uses a rectangular, molded design for quick, easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
| Parameter | Type | PC | SPC | UPC | APC |
| Insertion loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.3dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Mating Durability 500 timer | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Temperature Stabiility-40℃~75℃ | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Operating Temperature | -40℃~75℃ | ||||
Features:
Screw-thread coupling mechanism.
Ceramic ferrules.
Low insertion loss, high return loss.
Good in repeatability and exchangeability.
100% Insertion, Return Loss, End Face and Interference inspection.
Excellent mechanical endurance.
High credibility and stability.
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications:
1. CATV.
2. Optical fiber communication systems.
3. Optical fiber data transmission.
4. Building network access.
5. Cabling system, ODF.
6. FTTX applications.
