Product Details:
|
| Type: | FTTx Solutions | No.of Fiber: | 1 |
|---|---|---|---|
| Use: | FTTx | Fiber Type: | 9/125μm Single Mode |
| Insertion Loss: | <0.3dB | Return Loss: | <55dB |
| Operate Temperature: | -40℃~75℃ | Fiber Count: | Simplex/Duplex |
| Wavelength: | 1310nm/1550nm | Application: | FTTH System |
| Material: | PVC/LSZH | ||
| High Light: | PVC Jacket Single Mode Fiber Patch Cord,3M LC APC Patch Cord,LC APC Single Mode Fiber Patch Cord |
||

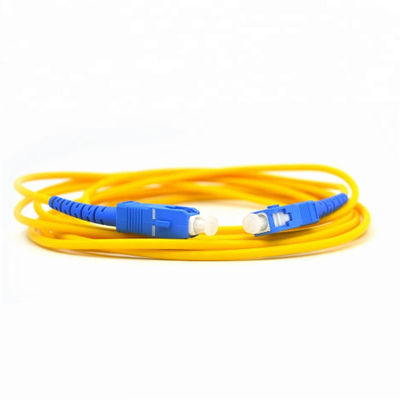

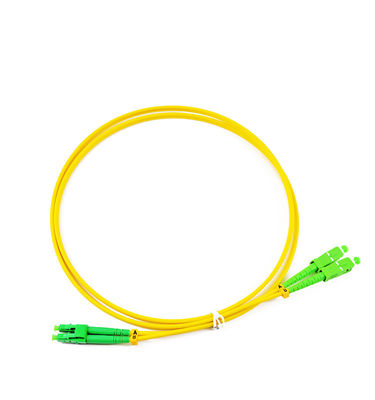

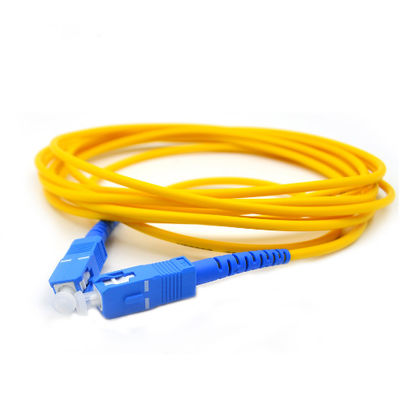

LSZH PVC Jacket 3 Meters LC APC Single Mode Simplex Fiber Optic Patchcord
Description:
SC cable assemblies are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). SC cable assemblies are well suited for high-density applications. The SC connector uses a rectangular, molded design for quick, easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
Features:
· Low insertion loss and high return loss
· The patch cord can be customized according to customer’s specific requirements
· Strict quality testing: IL and RL 100% test.
· All materials meet the RoHS standard.
Applications
· Optical fiber communication system
· telecommunication network
· LANs and WANs
· CATV
· FTTX
Specifications:
| Item | Parameter | |
| connector type | SC, LC, FC, ST, MU, D4, DIN | |
| Fiber mode | Single mode | Multi-mode |
| Operating wavelength | 1250~1650nm | 850nm, 1300nm |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | Typ ≤0.20dB, Max≤0.30dB | Typ ≤0.15dB, Max≤0.25dB |
| Return Loss | UPC≥50.0dB, APC≥60.0dB | ≥45.0dB |
| Durability | ≤0.20dB typical change, 1000 mating | |
| Tensile Strength | ≥120N (without 0.9mm patch cord) or customized | |
| Operating Temperature | -20ºC to +70ºC | |
