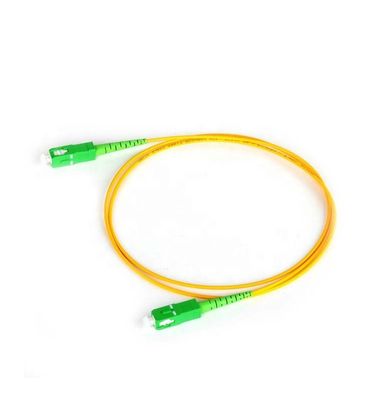

Product Details:
|
| Model Number: | Fiber Optical Patchcord | Ferrule: | APC |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Fiber Count: | Simplex/Duplex |
| Outer Diameter: | 3.0mm | Fiber Mode: | OM1,OM2,OM3,OM4 |
| Connector Type: | SC/APC-SC/APC | Fiber Type: | G652D/G657A1/G657A2 |
| Cable Length: | 1.5/3/5/10/20/30m Or Customized | Brand Name: | Weiroct/OEM |
| No.of Fiber: | 1 | ||
| Highlight: | FTTH Simplex Fiber Optic Patch Cord,3M Simplex Fiber Optic Patch Cord,3M SC APC Patch Cord |
||
Description:
SC cable assemblies are designed for the most advanced fiber optic systems providing exceptional stability and low reflection (single-mode). SC cable assemblies are well suited for high-density applications. The SC connector uses a rectangular, molded design for quick, easy push-pull installation. This design prevents ferrule rotation and axial damage on the fiber contact points, reducing the potential for damage from mechanical vibration.
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.25dB(PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
| Return Loss(dB) | ≥50dB(PC/UPC) ≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
