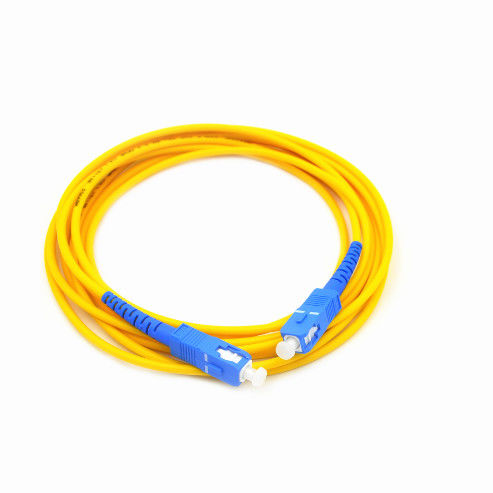

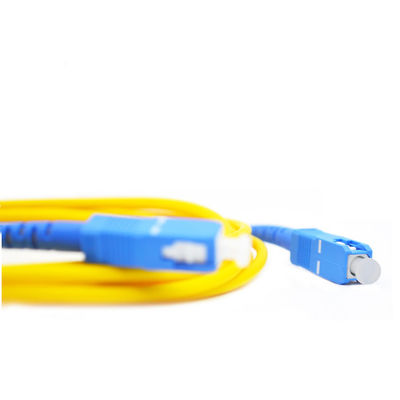

Product Details:
|
| Product Type: | FTTH Drop Cable Patchcord | Quality Control: | 100% Test Before Delivery |
|---|---|---|---|
| Fiber Type: | Singlemode | Insertion Loss: | <0.3dB |
| Return Loss: | <55dB | Operate Temperature: | -40℃~75℃ |
| Jacket Material: | LSZH | Certification: | ISO 9001/CE/ROHS |
| Fiber Count: | Simplex | Application: | FTTH System |
| High Light: | 2.0mm Optical Fiber Patchcord,Simplex Optical Fiber Patchcord,Simplex SC APC Patch cord |
||
Features:
· Low insertion loss and high return loss
· The patch cord can be customized according to customer’s specific requirements
· Strict quality testing: IL and RL 100% test.
· All materials meet the RoHS standard.
Applications:
· Optical fiber communication system
· telecommunication network
· LANs and WANs
· CATV
· FTTX
| Parameter | Type | PC | SPC | UPC | APC |
| Insertion loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.3dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Mating Durability 500 timer | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Temperature Stabiility-40℃~75℃ | Additional Loss≤0.1dB Return Loss Variability<5dB | ||||
| Operating Temperature | -40℃~75℃ | ||||
