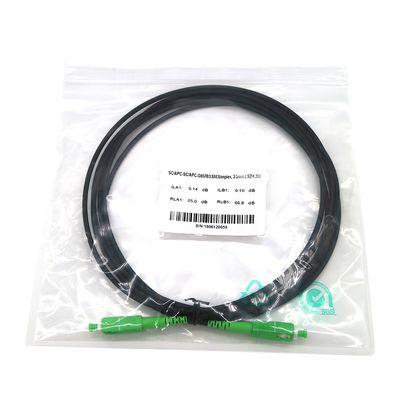

FTTH 3.5mm G657B3 Sc Apc Single Mode 3m Fiber Optic Patch Cord

FTTH 3.5mm G657B3 Sc Apc Single Mode 3m Fiber Optic Patch Cord
FTTH 3.5mm G657B3 Sc Apc Single Mode 3m Fiber Optic Patch Cord

Large Image :  FTTH 3.5mm G657B3 Sc Apc Single Mode 3m Fiber Optic Patch Cord

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: Patchcord SC APC
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD
Packaging Details: 250pcs/Carton
Delivery Time: 5~20 DAYS
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/day

FTTH 3.5mm G657B3 Sc Apc Single Mode 3m Fiber Optic Patch Cord

Description
Model Number: Fiber Optical Patchcord Ferrule: APC
Jacket Material: LSZH/PVC Fiber Count: Simplex/Duplex
Outer Diameter: 2.0/3.0mm Fiber Mode: OM1,OM2,OM3,OM4
Connector Type: SM/MM Fiber Type: G652D/G657A1/G657A2
Cable Length: 1m/3m/5m/15m/50m Or Customized Insertion Loss: 0.15dB~0.3dB
Operate Temperature: -40~85°C
High Light:

FTTH G657B3 3m Fiber Optic Patch Cord

,

3.5mm Sc Apc Patch Cord

,

FTTH G657B3 Fiber Optic Patch Cord

FTTH 3.5mm G657B3 Sc/Apc Single Mode 3m Optical Fiber Cable Patchcord







Features:

A. Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.

B. LSZH inner sheath and PE Outer shealth gives more excellent tensile strength,mechanial,rodent,ultraviolet and environmental
protection.
We springoptic can product Fiber Outdoor Exterior Patch cord/Pigtails ,inside 1.9mm inner white LSZH sheath, outer jacket is PE Material,it can be used indoor and outdoor . And outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels,terminal box and make splicing installation .The fiber we used G657A2 fiber.For this type Patch cord/ pigtail length always 20M,30M,40M,60M,80M,100M,120M,2KM.



Fiber Mode
Singlemode or Multimode
Fiber Count
1
Connector Stype
SC,FC,ST,LC,MU,DIN
Polish or Ferrule Interface Type
PC,APC,UPC
Cable Lengths
Custom Lengths
Jacket Materials
PE Material
Outer Jacket Color
Black
Inner Jacket Color
White
Outer Jacket Diameter(mm)
3.5±0.1
Inner Jacket Diameter(mm)
1.9±0.1
Storage Temperature
-20°C to 60°C
Installation Temperature
-5°C to 50°C
Operating Temperature
-20°C to 60°C
Crush(N/100mm)
1000
Maximum Tensile Load (Long term)
150N
Minimum Tensile Load (Short term)
400N
Item
Single Mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/12510Gb
Insert Loss(Single fiber)
0.2dB Max.(0.15dB Typical)
0.3dB Max.(0.25dB Typical)
Return Loss
≥45 dB
≥50 dB
≥60 dB
PC≥35dB
Insert Loss/MTRJ Connector
0.5dB Max.(0.45dB Typical)
0.5dB Max. (0.45dB typ.)
Pull Strength
≥98N
≥98N
