Product Details:
|
| Model Number: | Fiber Optical Patchcord | Ferrule: | APC |
|---|---|---|---|
| Jacket Material: | LSZH/PVC | Fiber Count: | Simplex/Duplex |
| Outer Diameter: | 2.0/3.0mm | Fiber Mode: | OM1,OM2,OM3,OM4 |
| Connector Type: | SC/APC-SC/APC | Fiber Type: | G652D/G657A1/G657A2 |
| Cable Length: | 1m/3m/5m/15m/50m Or Customized | Brand Name: | Weiroct/OEM |
| High Light: | Yellow G657A Fiber Optic Patch cord,SC APC Fiber Optic Patch cord,G657A SC APC Patch cord |
||
Description:

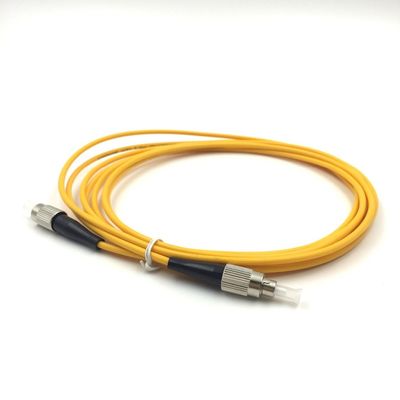

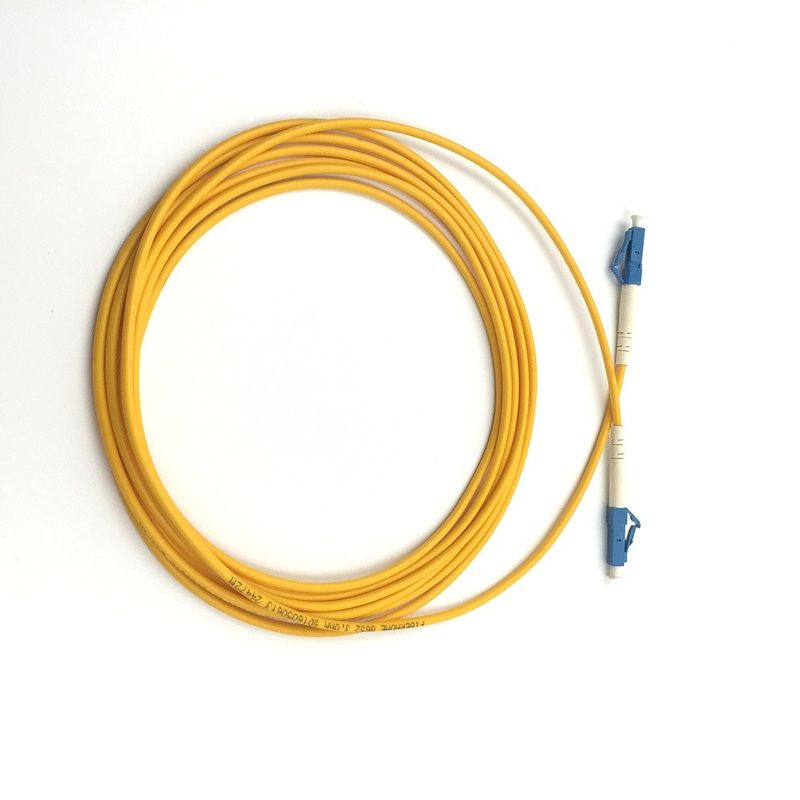

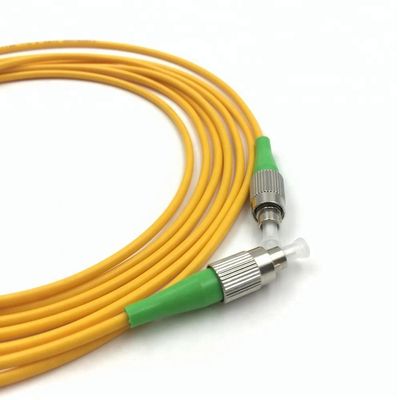

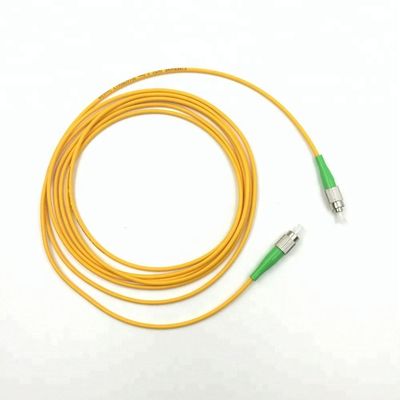

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
We provide OEM service, the following items can be customized:
1. Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA Connector Optional.
2. Ferrule end-face: PC, UPC, APC optional.
3. Fiber mode: 9/125um Singlemode, Multimode(OM2, OM3, OM4, OM5) optional.
4. Fiber Count: simplex, duplex optional.
5. Cable diameter: 3.0mm, 2.8mm, 2.0mm, 1.8mm, 1.2mm, 0.9mm optional.
6. Cable color: Yellow, ivory, white, blue, orange, aqua, pink color optional.
7. Cable length: 0.5m to 50m optional.
8. Cable jacket: PVC or LSZH optional.
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
Features:
(1) Ceramic Ferrule; (2) High return loss; (3) Low insertion loss; (4) Good repeatability and and exchangeability (5) Excellent Polished and 100% tested; (6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
