Product Details:
|
| Model Number: | P12MPL | Product Name: | 12C MPO To LC OM3 Ribbon Cable |
|---|---|---|---|
| Jacket Material: | LSZH | Conductors: | 2 |
| Package: | 1Unit/bag | Operate Temperature: | -40-+70 Degree |
| Connector Type: | SC LC FC ST | ||
| High Light: | 48 Cores Multimode Fiber Patch Cord,96 Cores Multimode Fiber Patch Cord,Indoor Multimode Patch Cord |
||

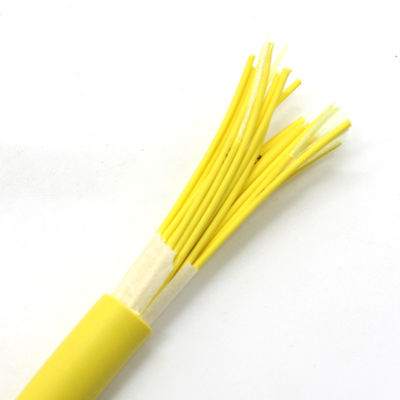

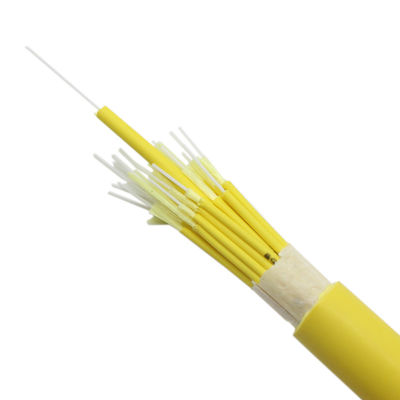

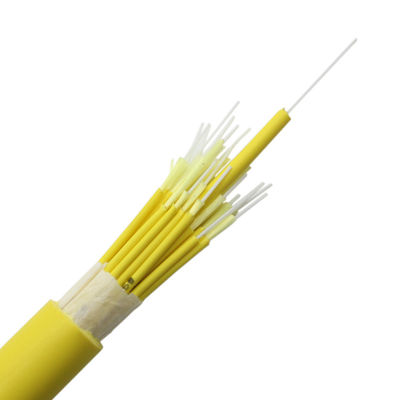

●Simplex cable(φ900um tight buffer fiber, aramid yarn as strength member) as subunit.
●A fibre reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.
●The subunits are stranded around the cable core. the cable is completed with a PVC or LZSH jacket.
|
Fiber Count
|
Outside OD(mm)
|
Tight Buffer OD(mm)
|
Weightkg/km
|
Tensile Strength(N)
|
Crush Resistance(N/100mm)
|
Bending Radius(mm)
|
|||
|
2
|
3
|
0.9
|
15
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
4
|
5
|
0.9
|
22
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
6
|
5
|
0.9
|
23
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
8
|
5.5
|
0.9
|
28
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
12
|
6
|
0.9
|
38
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
16
|
7.2
|
0.9
|
42
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
24
|
8.3
|
0.9
|
58
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
48
|
10
|
0.9
|
96
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
