Product Details:
|
| Type: | Fiber Adapter & Connectors | Use: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Product Name: | ESC250D Fast Connector | Cable Scope: | 3.0 X 2.0 Mm And 1.6*2.0mm Bow-type Drop Cable, 0.9mm |
| Insertion Loss: | ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC) | Connector Type: | SC APC/UPC |
| Fiber Type: | SM | Warranty: | 1 Year |
| Return Loss: | ≥50dB For UPC, ≥55dB For APC | ||
| High Light: | SM FTTH Fast Connector,ESC250D FTTH Fast Connector,SC Field Assembly Connectors |
||

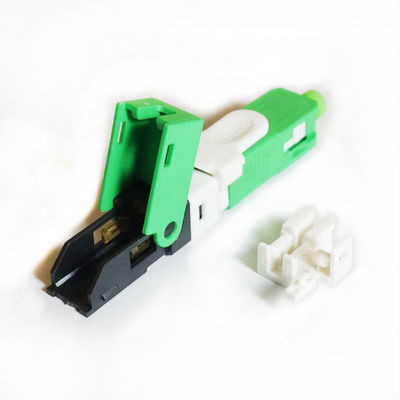

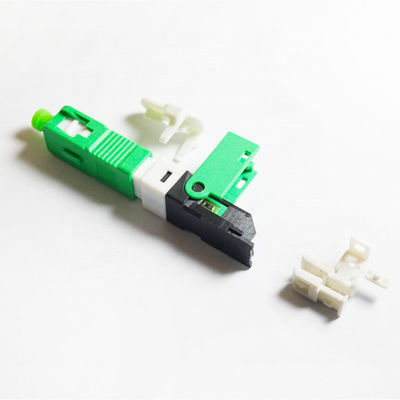

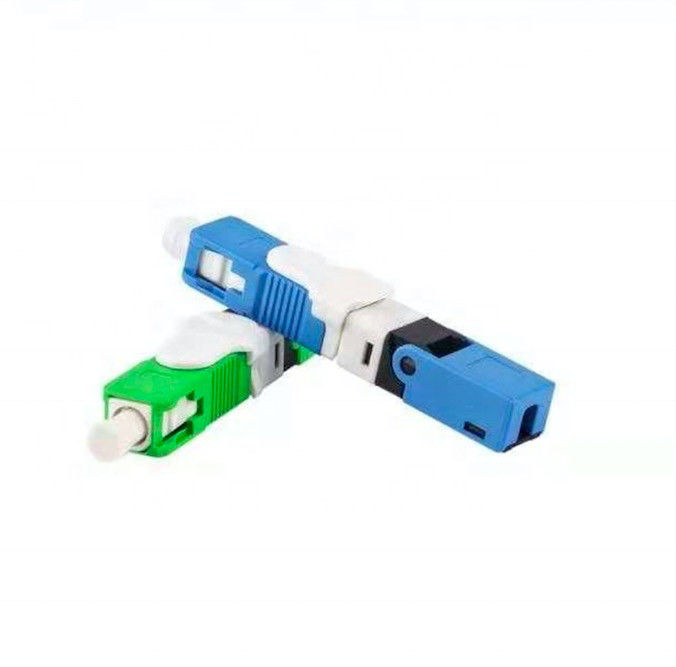

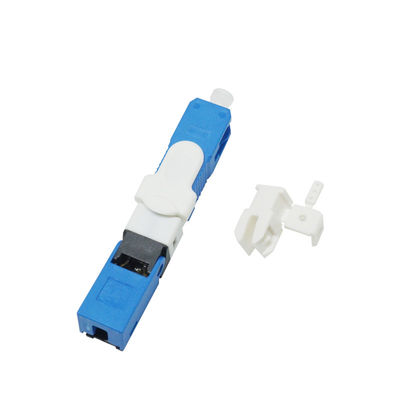

FTTH Fiber Optic SC APC Fast Field Connector:
Description:
SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted Into the connector body. The fast connect is available in both single mode and multi mode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.
Feature:
|
Item
|
Parameter
|
|
Cable Scope
|
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable, 0.9mm
|
|
Fiber Diameter
|
125μm (G652 & G657A1, G657A2)
|
|
Coating Diameter
|
250μm
|
|
Mode
|
SM
|
|
Operation Time
|
about 15s(exclude fiber presetting)
|
|
Insertion Loss
|
≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
|
|
Return Loss
|
≥50dB for UPC, ≥55dB for APC
|
|
Success Rate
|
>98%
|
|
Reusable Times
|
>10 times
|
|
Tighten Strength of Coating
|
>10 N
|
|
Tighten Strength of Naked Fiber
|
>5 N
|
|
Temperature
|
-40 ~ +85 C
|
|
On-line Tensile Strength Test (20 N)
|
IL ≤ 0.5dB
|
|
Mechanical Durability(500 times)
|
IL ≤ 0.5dB
|
|
Drop Test (4m concrete floor, once each direction, three times total)
|
IL ≤ 0.5dB
|
Application:
Direct termination of fibre.
