Product Details:
|
| Type: | Fiber Adapter & Connectors | Use: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Cable Scope: | 3.0 X 2.0 Mm And 1.6*2.0mm Bow-type Drop Cable, 0.9mm | Insertion Loss: | ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC) |
| Connector Type: | SC APC UPC | Fiber Type: | G652D/G657A1/G657A2 |
| Warranty: | 1 Year | Return Loss: | ≥50dB For UPC, ≥55dB For APC |
| High Light: | SM Fiber Optic Fast Connector,APC Fiber Optic Fast Connector,SC FTTH Fast Connector |
||

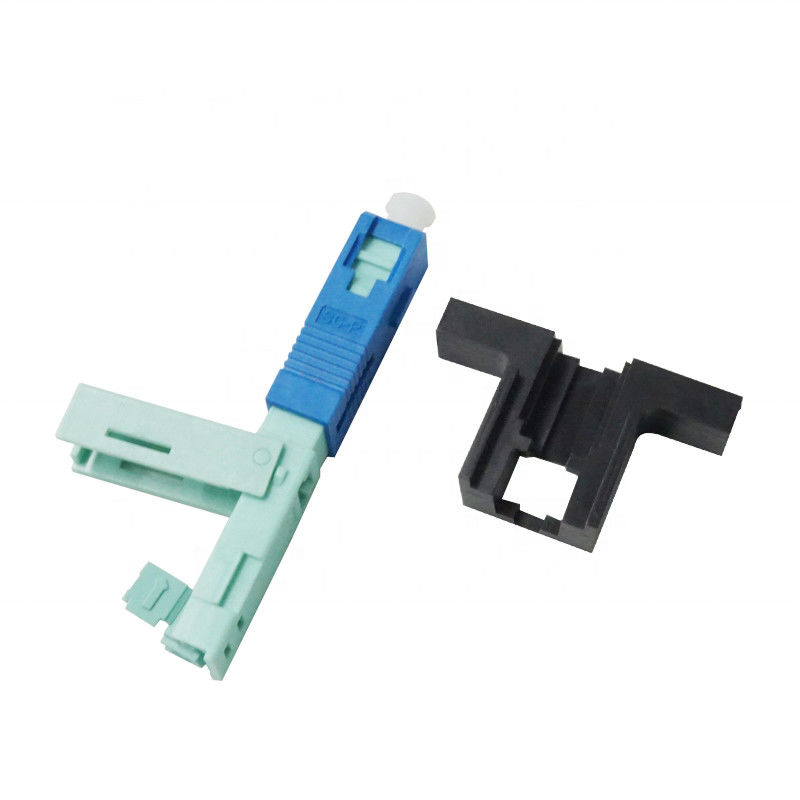

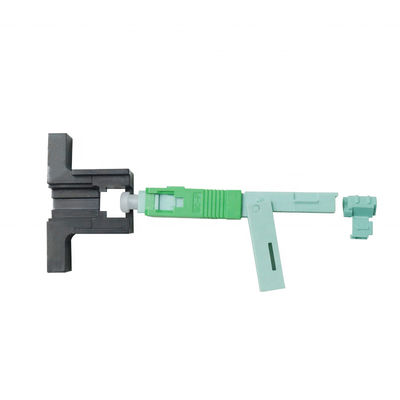

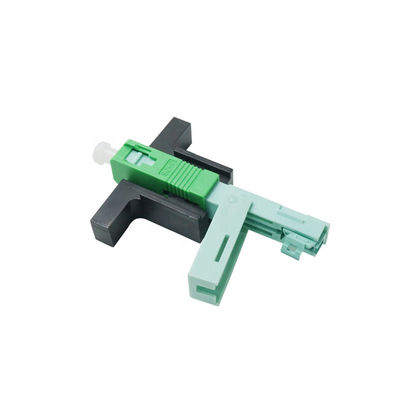

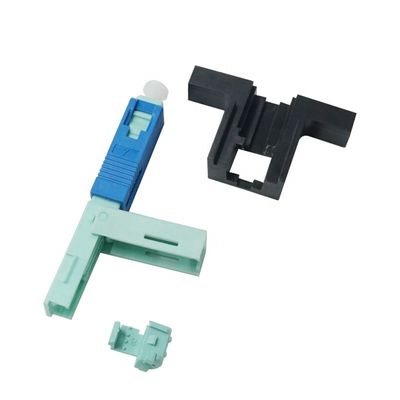

FTTH SC APC SM Fiber Optic Fast Connector
Description:
Fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow
and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high
quality and high eddiciency for installation, the structure of crimping position is a unique design.
Feature:
|
Item
|
Parameter
|
|
Cable Scope
|
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable, 0.9mm
|
|
Fiber Diameter
|
125μm (G652 & G657A1, G657A2)
|
|
Coating Diameter
|
250μm
|
|
Mode
|
SM
|
|
Operation Time
|
about 15s(exclude fiber presetting)
|
|
Insertion Loss
|
≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
|
|
Return Loss
|
≥50dB for UPC, ≥55dB for APC
|
|
Success Rate
|
>98%
|
|
Reusable Times
|
>10 times
|
|
Tighten Strength of Coating
|
>10 N
|
|
Tighten Strength of Naked Fiber
|
>5 N
|
|
Temperature
|
-40 ~ +85 C
|
|
On-line Tensile Strength Test (20 N)
|
IL ≤ 0.5dB
|
|
Mechanical Durability(500 times)
|
IL ≤ 0.5dB
|
|
Drop Test (4m concrete floor, once each direction, three times total)
|
IL ≤ 0.5dB
|
Application:
Direct termination of fibre.
