Product Details:
|
| Model Name: | FTTH Terminal Box | Type: | Wall Mounted |
|---|---|---|---|
| Material: | Plastic | Use: | FTTH FTTB FTTX Network |
| Ports: | 8 Port | Connectors Type: | SC FC LC ST |
| Operate Temperature: | -40~+85°c | ||
| High Light: | FTB208A Fiber Optic Termination Box,FTB208A FTTX Termination Box,FTB208A FTTH Termination Box |
||

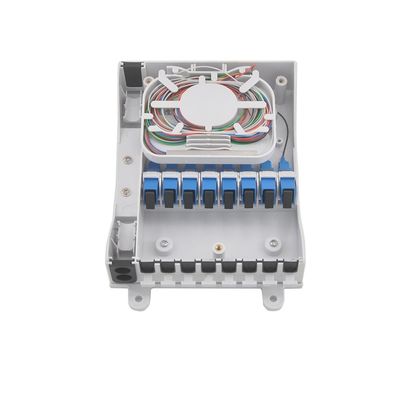

FTTX 8 cores Fiber Terminal Box Cable in2/out8 CTO BOX FTB208A
Description:
This product integrates fusing, splitting and wiring. It can realize direct fusing and divergence of optical cable. It is suitable for terminal access of client and wiring connection of optical communication equipment. Through the adapter of box, optical signal is drawn out by optical hopping wire to realize optical wiring function. It can also be fused with the household optical cable after the splitting wire is opened and coiled to realize the direct function of the optical cable and meet the needs of the traditional transmission network engineering.
Product characteristics:
A, the product is made of high quality impact resistant plastic, and has a standard user interface.
B, which can accommodate 1x4 or 1x8 PLC splitter.
C, has the function of anti ultraviolet, impact and waterproof.
D, hanging wall or holding pole installation;
E. Unique flip core, larger fiber space, more obvious weld zone and wiring zone, reduce the line crossing.
Technical indicators
Optical fiber curvature radius: 40mm
Additional loss of fiber optic disc: less than 0.01dB
Temperature range: - 40 C ~ + 70 C
• lateral pressure resistance: greater than 2000N / 10 cm
Shock resistance: greater than or equal to 20N.m
Protection level: IP65
Specification:
| Product model: | HLIN-OTB08BS | ||
| Szie(mm)Long×Width×Height | 192*133*47 | Outer Packing(mm)Long×Width×Height | 480*470*520 |
| Material: | High quality ABS/PC | Net weight(Kg) | 0.3 |
| Suitable for optical cable diameter(mm) | ≤F12 | Outer packing weight(Kg) | 19.5 |
| Fiber optic cable inlet / outlet number: | 4/8 | Outer package quantity: | 60 |
| Maximum fusion core number: | 8(core) | Outer package volume(M3 ) | 0.117 |
List of Package:
| Terminal box body | 1set | Instruction | 1 copy |
| Heat shrinkable tube L=40 | 2pcs | 3x100 tie | 2pcs |
| M4×25 plastic expansion screws | 4sets |
