Product Details:
|
| Model: | ODF | Color: | Black,White |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Core: | 48 |
| Port: | Multi Ports Can Be Customized | Connector Type: | ST, SC, LC, MTRJ, FC Adapters |
| Clampe: | 12FC/SC/ST Adaptor | ||
| High Light: | LC Sliding Fiber Optic Termination Boxes,LC Sliding Fiber Optic Termination Box,24 Port LC Sliding Type Patch Panel |
||

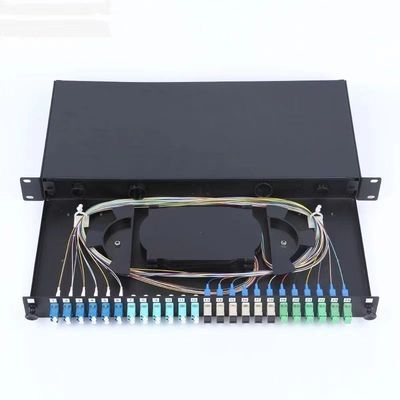

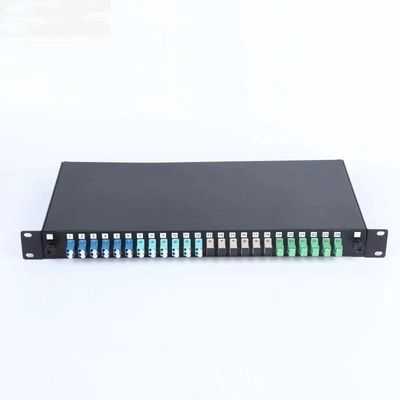

24 Port LC Sliding Type Patch Panel Fiber Optic Terminal Box:
Description:
Lots of panel plate to fit different adapter interface
Suitable for ribbon and single fiber
Easy for management

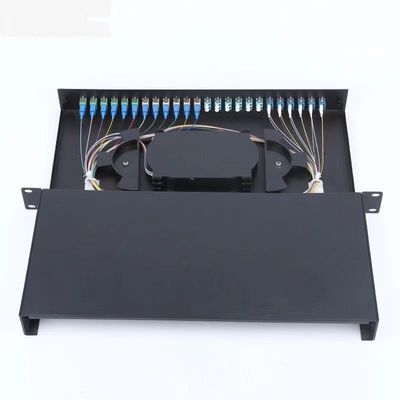

24-core Slidable Rack-mount Fiber Optic Distribution Frame(ODF) has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
Features:
1. Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
2. With splice trays in the box and integrate heat sealing and wiring into one.
3. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
4. It's suitable for ribbon or non-ribbon optical fiber cable.
5. Every tray can be clamped with 12FC/SC/ST adaptors.
6. Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time
Datas:
| Dimension | Height(mm) | Width(mm) | Depth(mm) | Weight(kg) |
| 24core | 70 | 430 | 300 | 5.2 |
| 48core | 140 | 430 | 300 | 7.5 |
| 72core | 200 | 430 | 300 | 10.2 |
| 96core | 255 | 430 | 300 | 12. |
