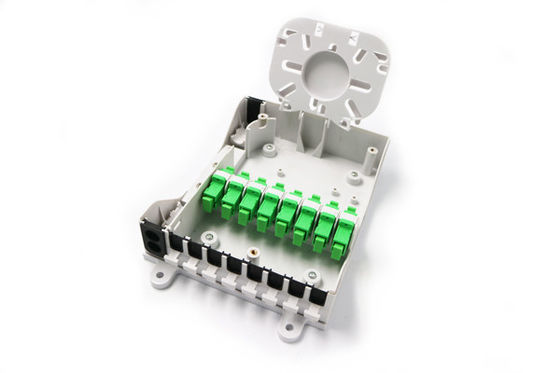

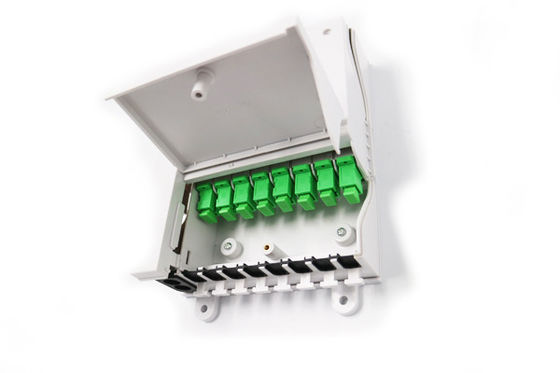

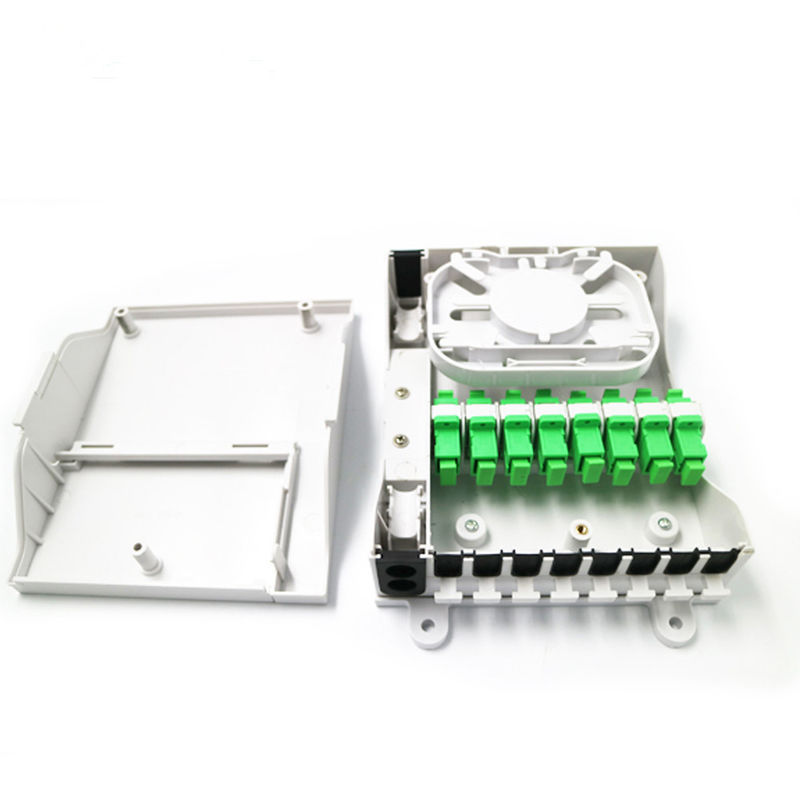

Indoor 8 Core Floor Fiber Optic Termination Box

Indoor 8 Core Floor Fiber Optic Termination Box
Indoor 8 Core Floor Fiber Optic Termination Box Indoor 8 Core Floor Fiber Optic Termination Box Indoor 8 Core Floor Fiber Optic Termination Box Indoor 8 Core Floor Fiber Optic Termination Box

Large Image :  Indoor 8 Core Floor Fiber Optic Termination Box

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: 1x8 PLC Plitter
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD
Delivery Time: 5~20 DAYS
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000pcs/month

Indoor 8 Core Floor Fiber Optic Termination Box

Description
Model Number: Fiber Optic Distribution Box Type: Wall Mounted
Material: Plastic Use: FTTH FTTB FTTX Network
Ports: 8 Port Connectors Type: SC FC LC ST
Operate Temperature: -40~+85°c
High Light:

IP65 Fiber Optic Termination Box

,

8 Core Fiber Optic Termination Box

,

Indoor Fiber Termination Box

Indoor 8 Core Fiber Optic Floor Distribution Termination Box





Description:

This product integrates fusing, splitting and wiring. It can realize direct fusing and divergence of optical cable. It is suitable for terminal access of client and wiring connection of optical communication equipment. Through the adapter of box, optical signal is drawn out by optical hopping wire to realize optical wiring function. It can also be fused with the household optical cable after the splitting wire is opened and coiled to realize the direct function of the optical cable and meet the needs of the traditional transmission network engineering.





Product characteristics:



A, the product is made of high quality impact resistant plastic, and has a standard user interface.
B, which can accommodate 1x4 or 1x8 PLC splitter.
C, has the function of anti ultraviolet, impact and waterproof.
D, hanging wall or holding pole installation;
E. Unique flip core, larger fiber space, more obvious weld zone and wiring zone, reduce the line crossing.

Technical indicators

Optical fiber curvature radius: 40mm
Additional loss of fiber optic disc: less than 0.01dB
Temperature range: - 40 C ~ + 70 C
• lateral pressure resistance: greater than 2000N / 10 cm
Shock resistance: greater than or equal to 20N.m
Protection level: IP65



Specification:



Product model: HLIN-OTB08BS
Szie(mm)Long×Width×Height 192*133*47 Outer Packing(mm)Long×Width×Height 480*470*520
Material: High quality ABS/PC Net weight(Kg) 0.3
Suitable for optical cable diameter(mm) ≤F12 Outer packing weight(Kg) 19.5
Fiber optic cable inlet / outlet number: 4/8 Outer package quantity: 60
Maximum fusion core number: 8(core) Outer package volume(M3 ) 0.117





List of Package:



Terminal box body 1set Instruction 1 copy
Heat shrinkable tube L=40 2pcs 3x100 tie 2pcs
M4×25 plastic expansion screws 4sets
