Product Details:
|
| Model Number: | Fiber Optic Distribution Box | Type: | FTTx Solutions |
|---|---|---|---|
| No.of Fiber: | 16 | Use: | FTTH |
| Ports: | 16 Core | Application: | Wall Mount Or Pole Mount |
| Waterproof: | IP65 | Dimension: | 270*200*100mm |
| High Light: | 16F Fiber Optical Distribution Box,16 Core Fiber Optical Distribution Box,16 Core FTTH Terminal Box |
||

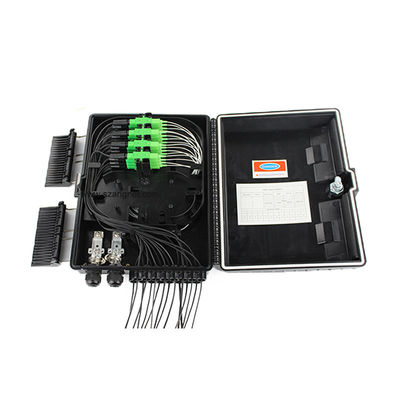

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1.ABS material used ensures the body strong and light.
2.Water-proof design for outdoor uses.
3.Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5.Ready for splitters: designed space for adding splitters.
6.Space saving! Double-layer design for easier installation and maintenances:
7.Lower layer for splitters and over length fiber storage.
8.Upper layer for splicing, cross-connecting and fiber distribution.
9.Cable fixing units provided for fixing the outdoor optical cable.
10.Protection Level: IP65.
11.Accommodates both cable glands as well as tie-wraps
12.Lock provided for extra security
| Dimensions and Capability | |
| dimensions(W*H*D) | 270mm*220mm*100mm |
| Adapter Capacity | 16xSC;16xLCDX;1x16 PLC Splitter |
| Number of Cable Entrance/Exit | 2/16 |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 1.8KG |
| Shipping Information | |
| Pakage Contens | Distribution box, 1 unit; Keys for lock, 2keys |
| Wall mount installation accessories,1 set | |
| Package dimensions(W*H*D) | 270mm*200mm*100mm |
| Weight | 1.8KG |
